Front and Rear Bonded Rubber Mountings For Upper Control Arm, Replacing

Front and rear bonded rubber mountings for upper control arm, replacing

Special tools, testers and auxiliary items required:

^ Thrust disc VW 412
^ Tube 60 mm dia. VW 415 A
^ Tube 31.5 mm dia. VW 418 A
^ Support channels VW 457
^ Assembly device 3292

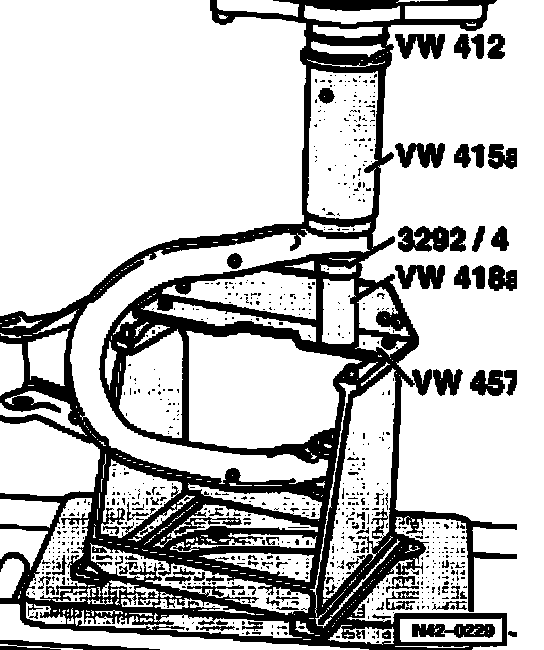

Pressing out bonded rubber mounting

The bonded rubber mountings for upper control arm on the rear axle were modified. The "kidney" shaped recess in the rubber segment was discontinued.

Only new bonded rubber mountings without a kidney shaped recess are supplied as spare part.

Therefore bonded rubber mountings must be replaced as a pair on both sides on vehicles up to and including vehicle identification No. 3B WE 102 715.

A mixed installation is not permissible!

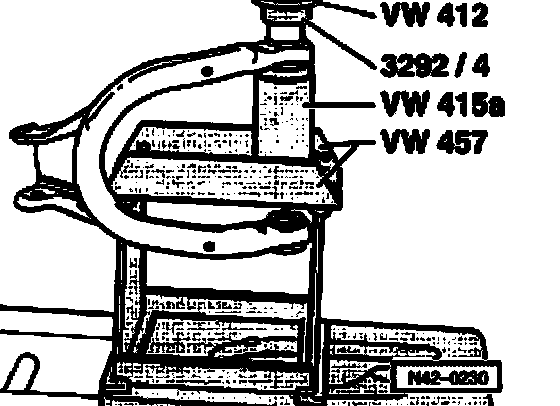

Pressing in bonded rubber mounting
