Bonded Rubber Mounting For Cross Member, Pressing Out and In

Bonded rubber mounting for cross member, pressing out and in

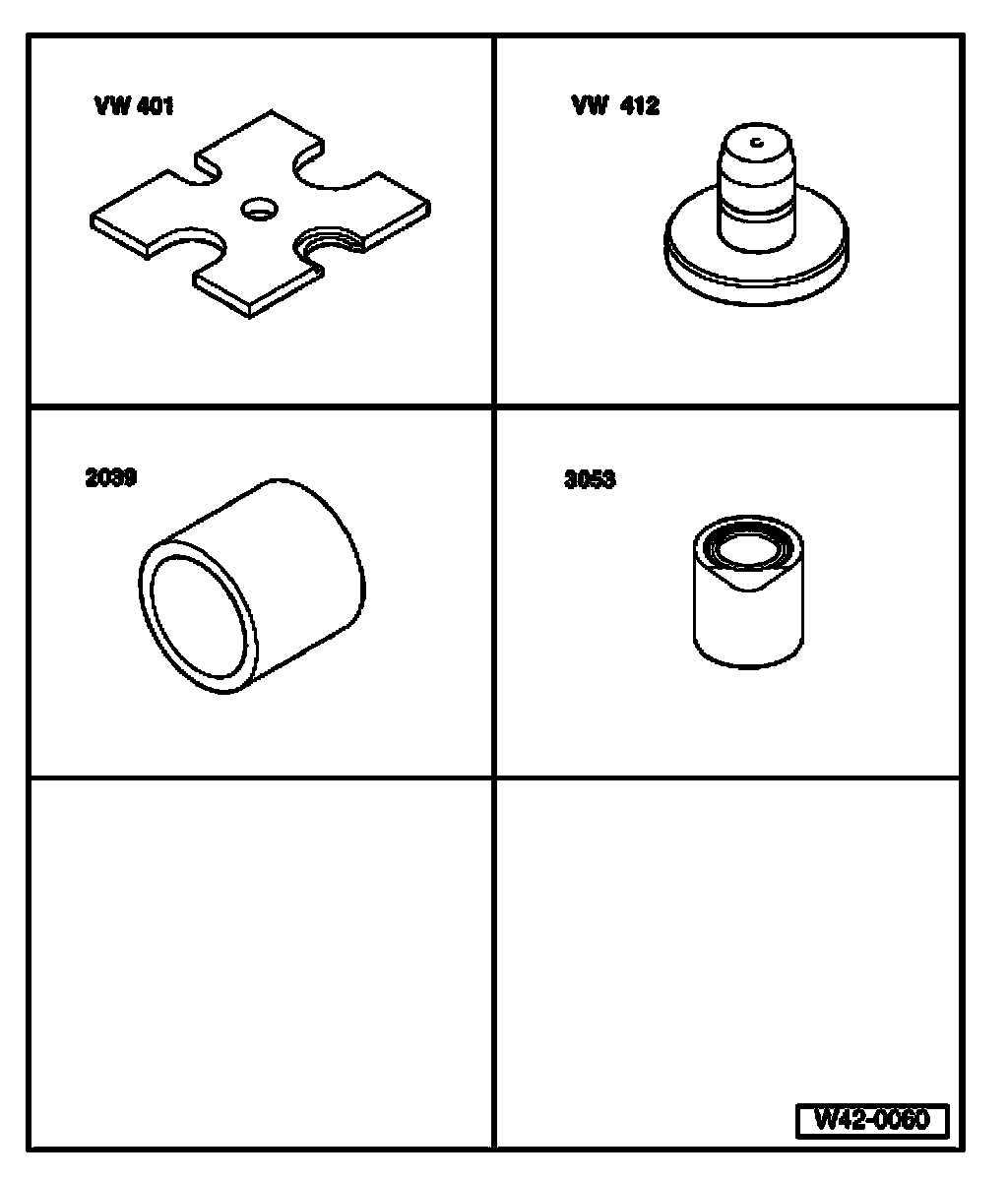

Special tools, testers and auxiliary items required:

^ Thrust plate VW 401
^ Punch VW 412
^ Press tool 2039
^ Guide tube 3053

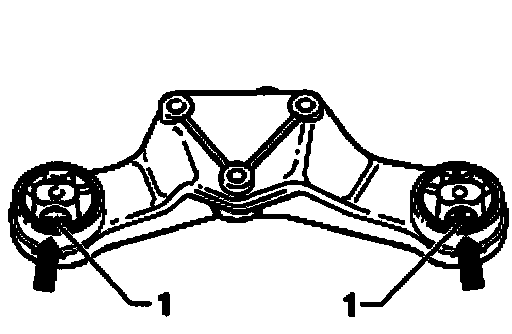

Mark installation position of bonded rubber mounting in cross member
^ Mark installation position - arrows - e.g. with a felt tip pen.

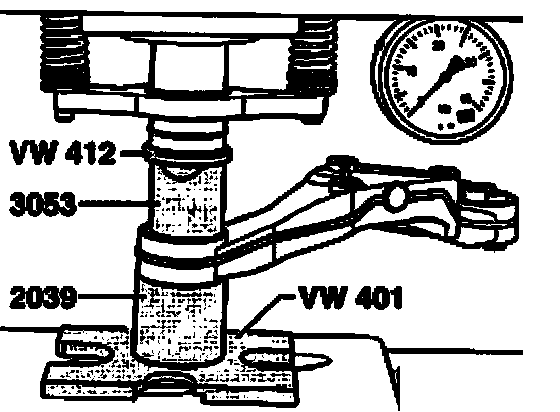

Pressing bonded rubber mounting out of cross member

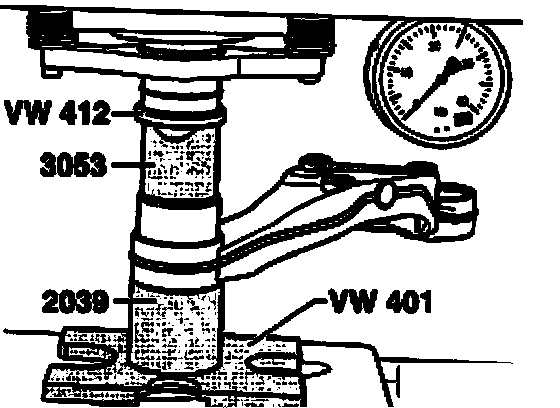

Pressing bonded rubber mounting into cross member
^ Position bonded rubber mounting so that one of the rubber nipples - 1 - on illustration N42-0225 aligns with marking - arrow -.
