Front Suspension

Bushings for front and rear upper control arms, replacing

Special tools, testers and auxiliary items required

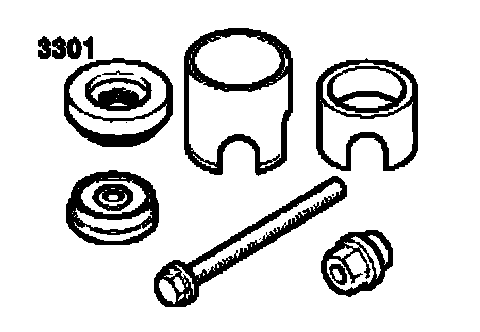

Assembly tool 3301:

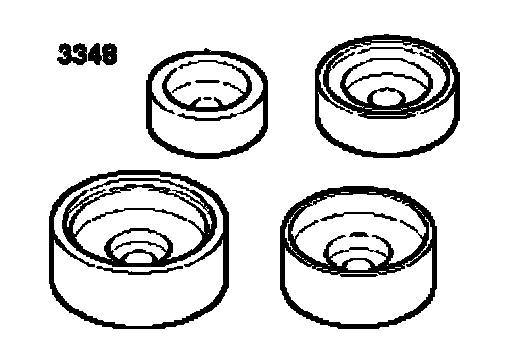

Front and rear bearing tool 3348:

Aluminium links must only be clamped in a vise with protective clamps!

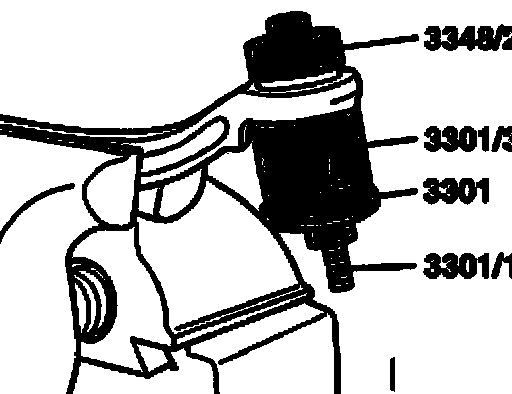

Pulling out bushing

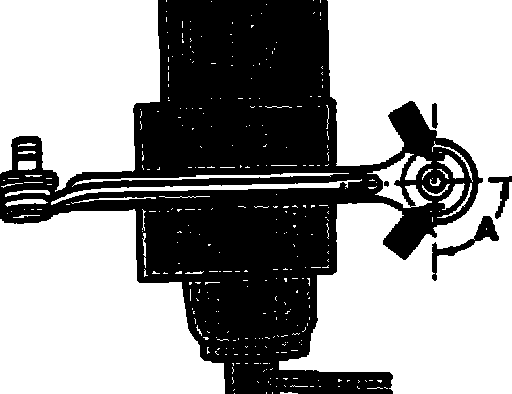

Installation location of bushing
A = 90° ± 5°

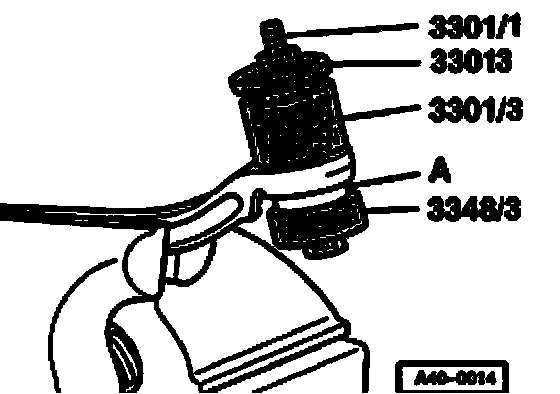

Pulling in bushing
A - Bushing
