Operating Unit In Steering Wheel, Removing and Installing

Operating Unit In Steering Wheel, Removing And Installing

Removing

CAUTION: Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove driver's airbag unit

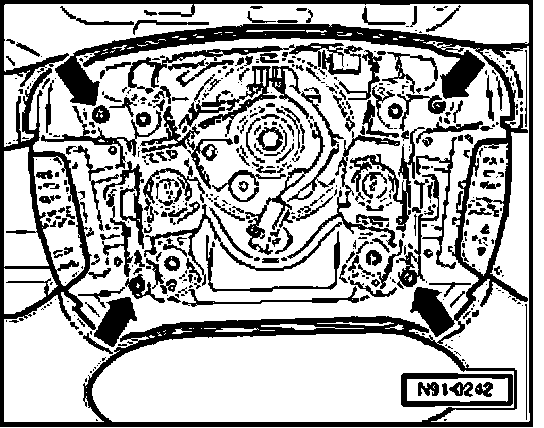

- Remove screws (arrows) from operating unit.

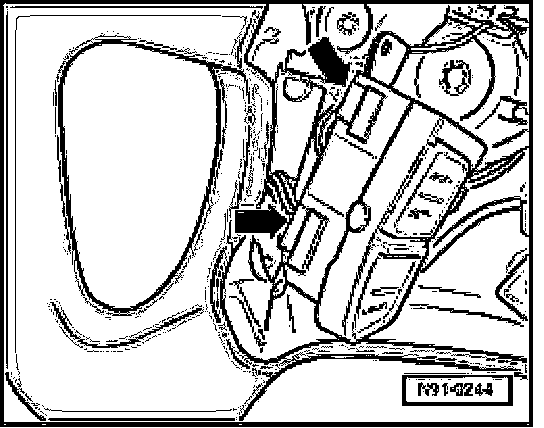

- Disconnect harness connectors (arrows) on operating unit.
- Remove operating unit.

Installing
Install in reverse order of removal.
