Multi-Function Steering Wheel Control Module, Removing and Installing

Multi-Function Steering Wheel Control Module, Removing And Installing

Removing

CAUTION: Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove fuse box cover.

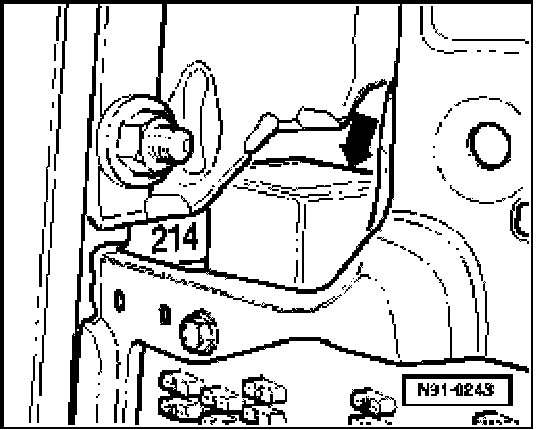

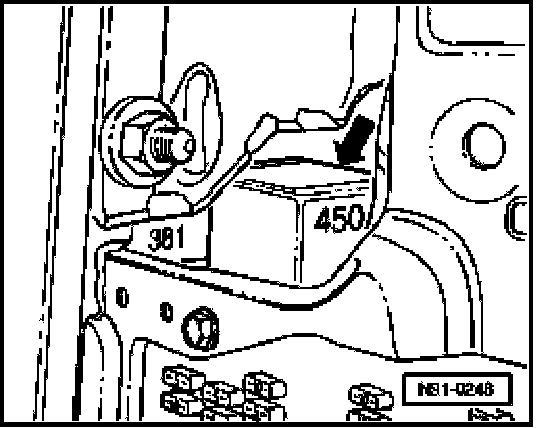

- Vehicles from 10.00: Pull control module for multi-function steering wheel out from relay plate.

Installing
Install in reverse order of removal.
- Vehicles from 12.01: Code multi-function steering wheel control module using VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Testing and Service System in mode "Guided Fault Finding".
