Steering Wheel: Locations

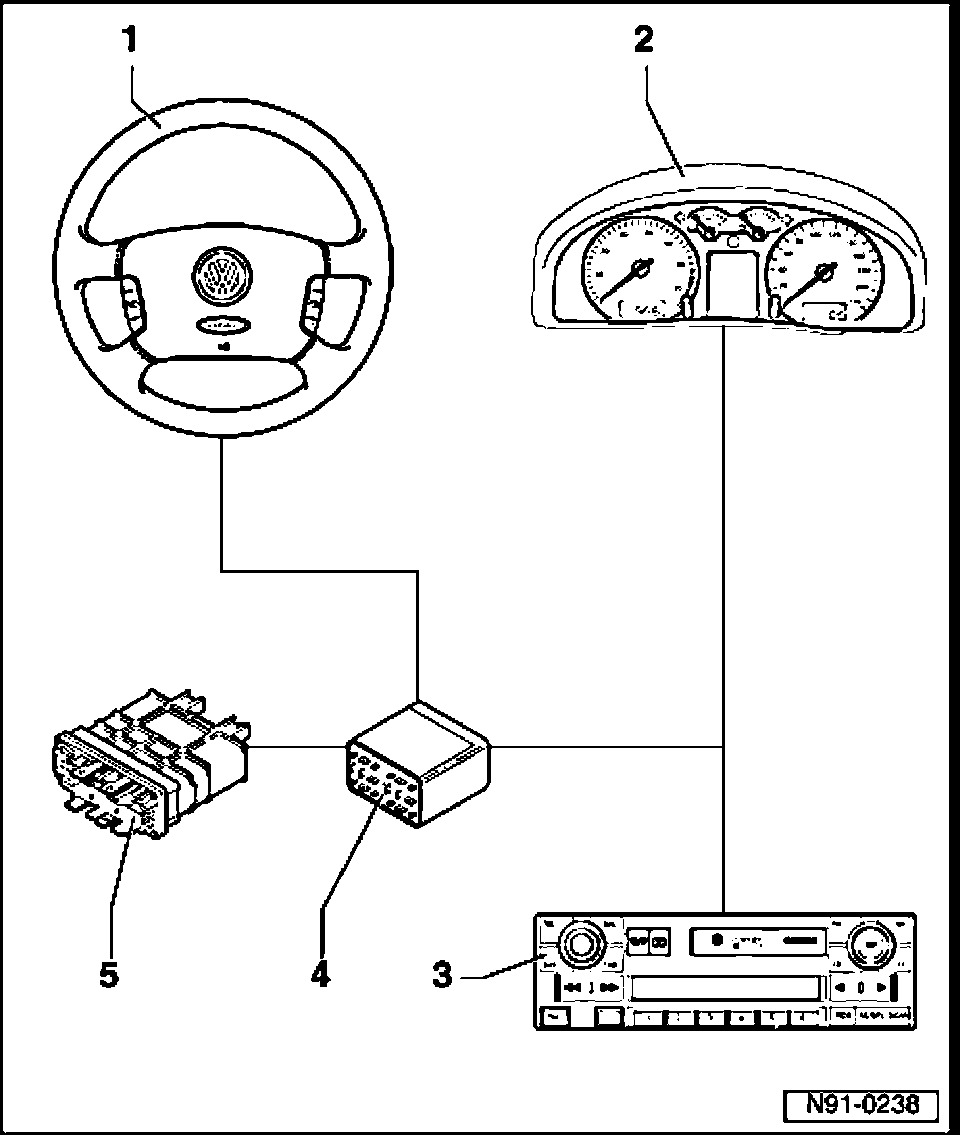

Multi-Function Steering Wheel, Overview







1. Multi-function steering wheel
- With integrated operating unit -E221-
- Operating unit in steering wheel, removing and installing
2. Instrument cluster
- Control module with display unit in instrument cluster -J285-
- Instrument cluster, removing and installing.
3. Radio
- Installed in center console
4. Control module for multi-function steering wheel -J453-
- Installed on relay panel
- Connector assignment
5. Engine Control Module (ECM)
- Controls cruise control
