Steering Gear, Assembly Overview

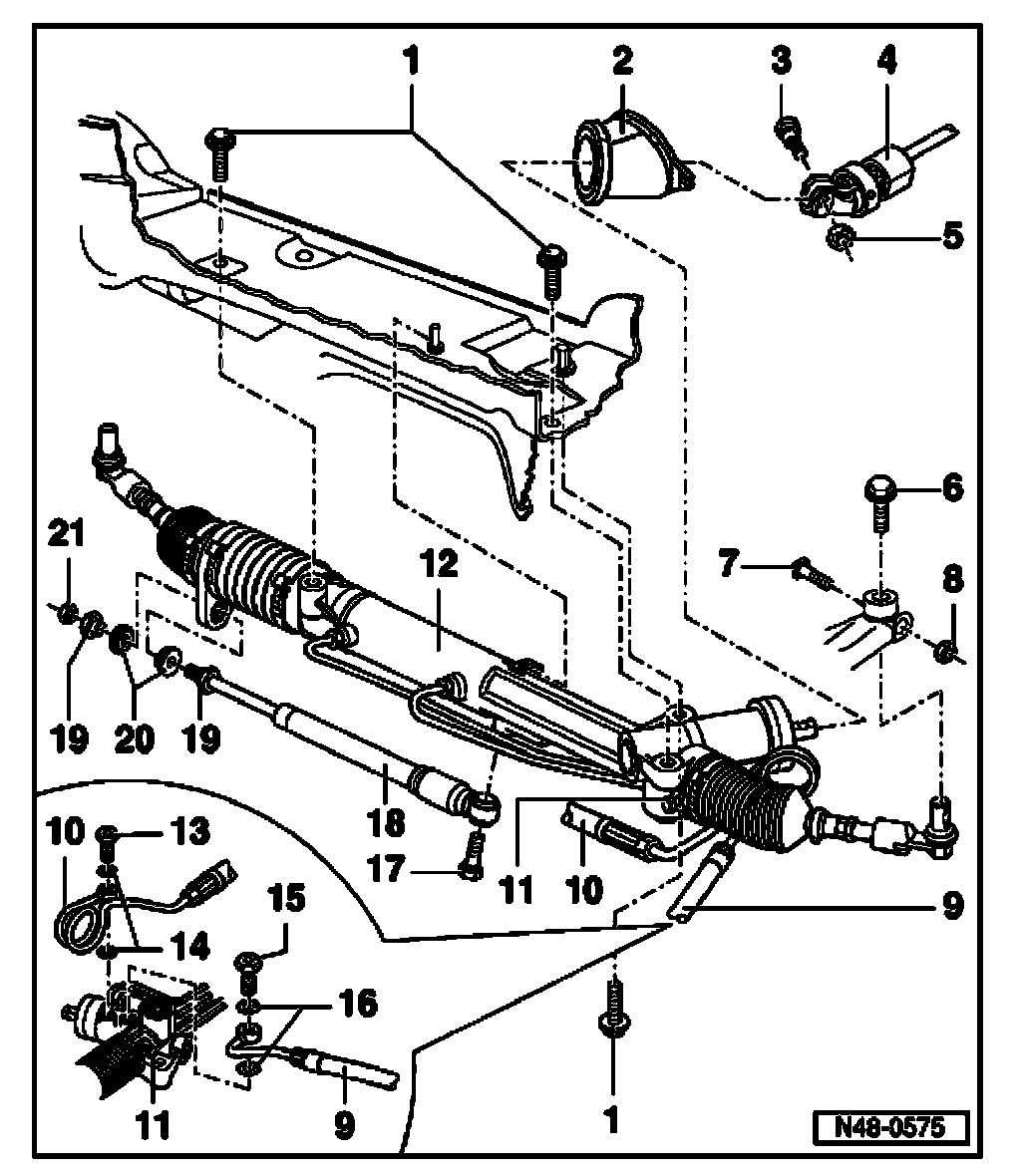

Steering gear, assembly overview





1. Twelve point bolt, 65 Nm
2. Sealing boot
3. Eccentric bolt
^ Torx T50

4. Steering column
5. Self-locking hex nut, 40 Nm
^ Always replace

6. Hex bolt, 7 Nm
7. Bolt
8. Self-locking hex nut, 45 Nm
^ Always replace
^ Return hose

10. Pressure hose
11. Internal hex bolt, 13 Nm
12. Power steering gear with tie rods
13. Banjo bolt, 40 Nm
^ With integrated check valve

14. Sealing ring, 14 x 20
^ Always replace

15. Banjo bolt, 50 Nm
16. Sealing ring, 16 x 22
^ Always replace

17. Hex bolt, 35 Nm
18. Steering damper
Introduced in vehicles with 4 or 5 cylinder engines at a later stage in production

19. Bushing
20. Rubber bushing
^ Two part

21. Hex nut, 10 Nm
^ To loosen and tighten, counter hold on steering damper piston rod hex
