Steering Gear: Adjustments

Power steering gear, adjusting

Note:
^ Two mechanics are required when adjusting. Adjust with engine switched off

^ Raise vehicle on hoist.
^ Wheels in straight-ahead position.

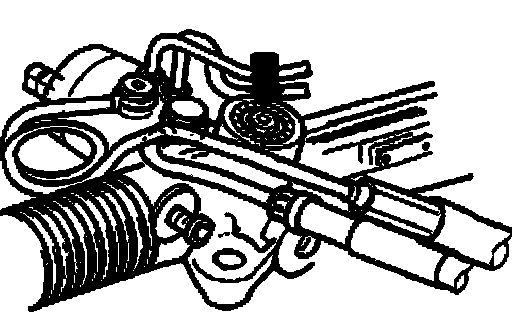

^ The second mechanic must carefully screw the adjustment screw - arrow - until the knocking noise can no longer be heard inside the vehicle.
^ Carry out a road test.
^ Ensure that when maneuvering or negotiating comers the steering self-centers without sticking, re-adjust if necessary.
