Power Steering Fluid: Testing and Inspection

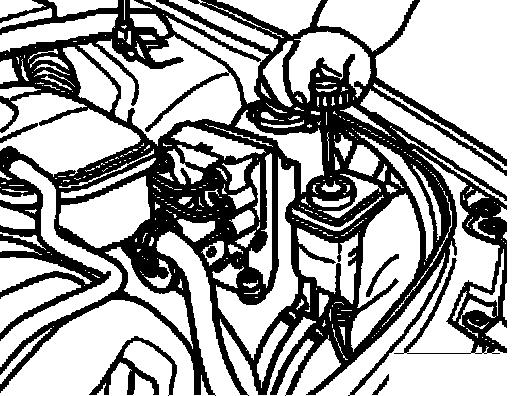

Power steering fluid level, checking
^ Do not run engine and turn front wheels to straight ahead position.

Fluid in cold condition:
^ Remove cap.
^ Wipe dipstick off with a clean cloth.
^ Screw cap on hand4ight and unscrew again.

Note:
^ The cap must be fully screwed in order to obtain an accurate fluid level reading.





^ Check fluid level: Level must be in area of MIN mark (up to 2 mm above or below mark).

Fluid at operating temperature (from approximately 50°C):
^ Check fluid level: Level must be between MIN. and MAX. marks.

Note:
^ Fluid must be drawn off if the level is above the specified range.
^ If oil level is below aforementioned area, then the hydraulic system must be checked for leaks. It is not sufficient to merely top off the fluid.
