Rear Axle Camber (Vehicles With All Wheel Drive), Adjusting

Rear axle camber (vehicles with all wheel drive), adjusting

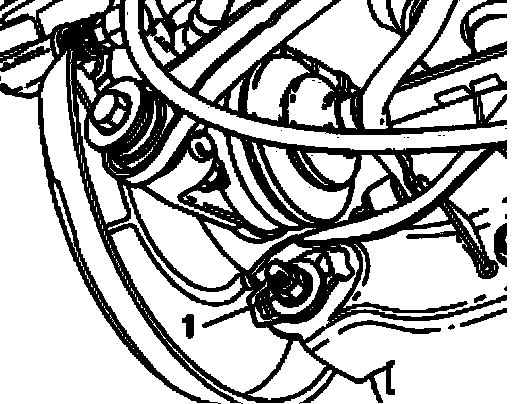

^ Loosen hex nut - 1 -.

Note:
^ The maximum adjustment range of the adjustment screw is 90° to the left or right of center.

^ Turn eccentric bolt until the specification is obtained.
^ Tighten hex nut - 1 - again.
^ Check camber values again.
