Connector Arrangement Of Connector Station A-Pillar, Right
Connector Arrangement Of Connector Station A-Pillar, Right

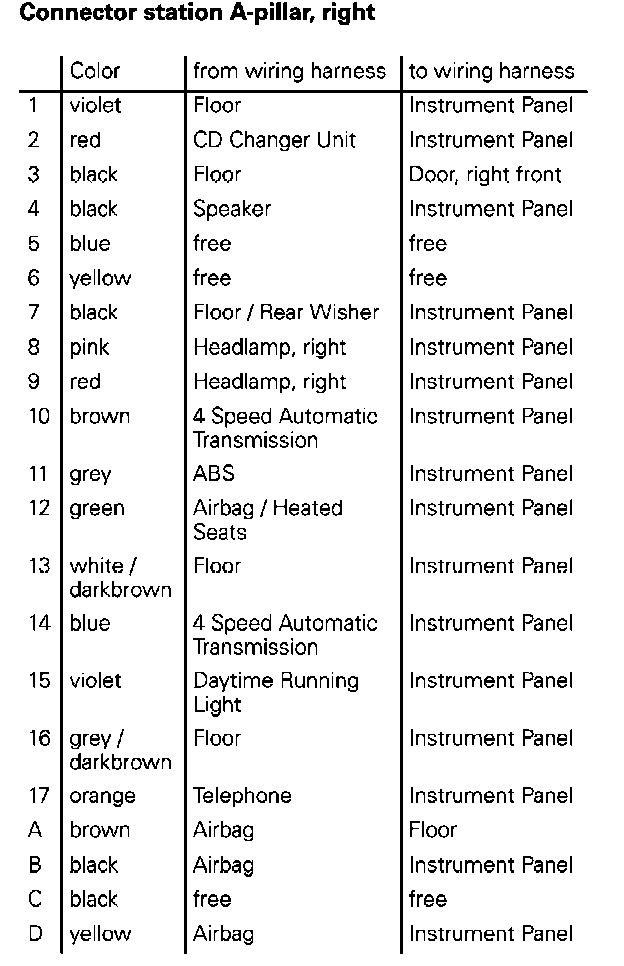

Connector Arrangement Of Connector Station A-Pillar, Right:

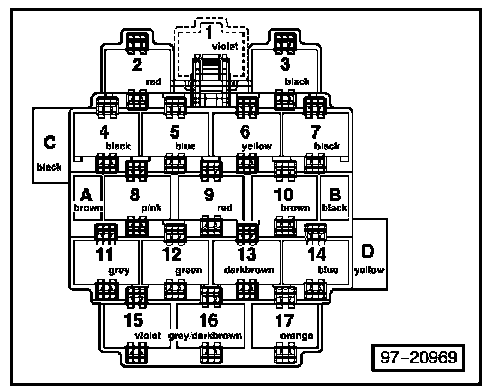

Connector Station A-Pillar, Right:
