Passat Wagon 4Motion (3B6) L4-1.8L Turbo (AWM)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>

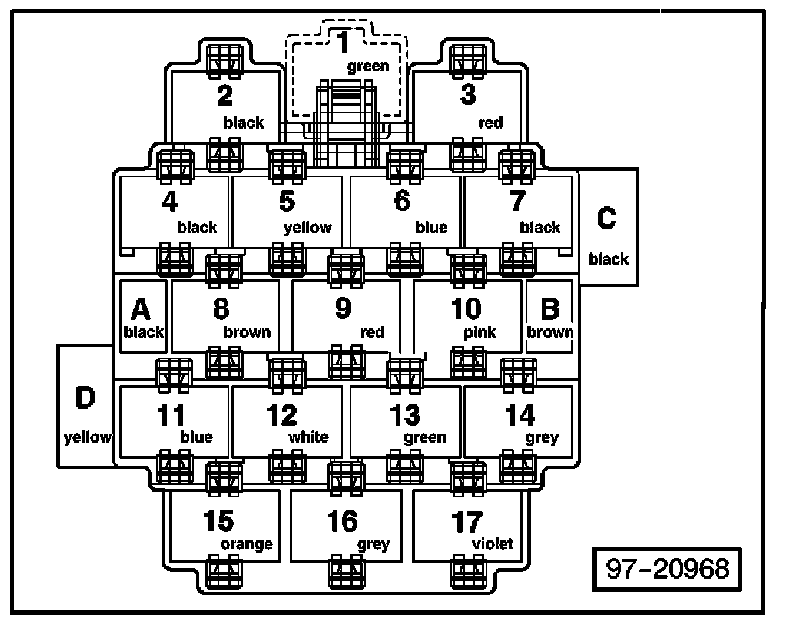

Connector Arrangement Of Connector Station A-Pillar, Left
Connector Arrangement Of Connector Station A-Pillar, Left

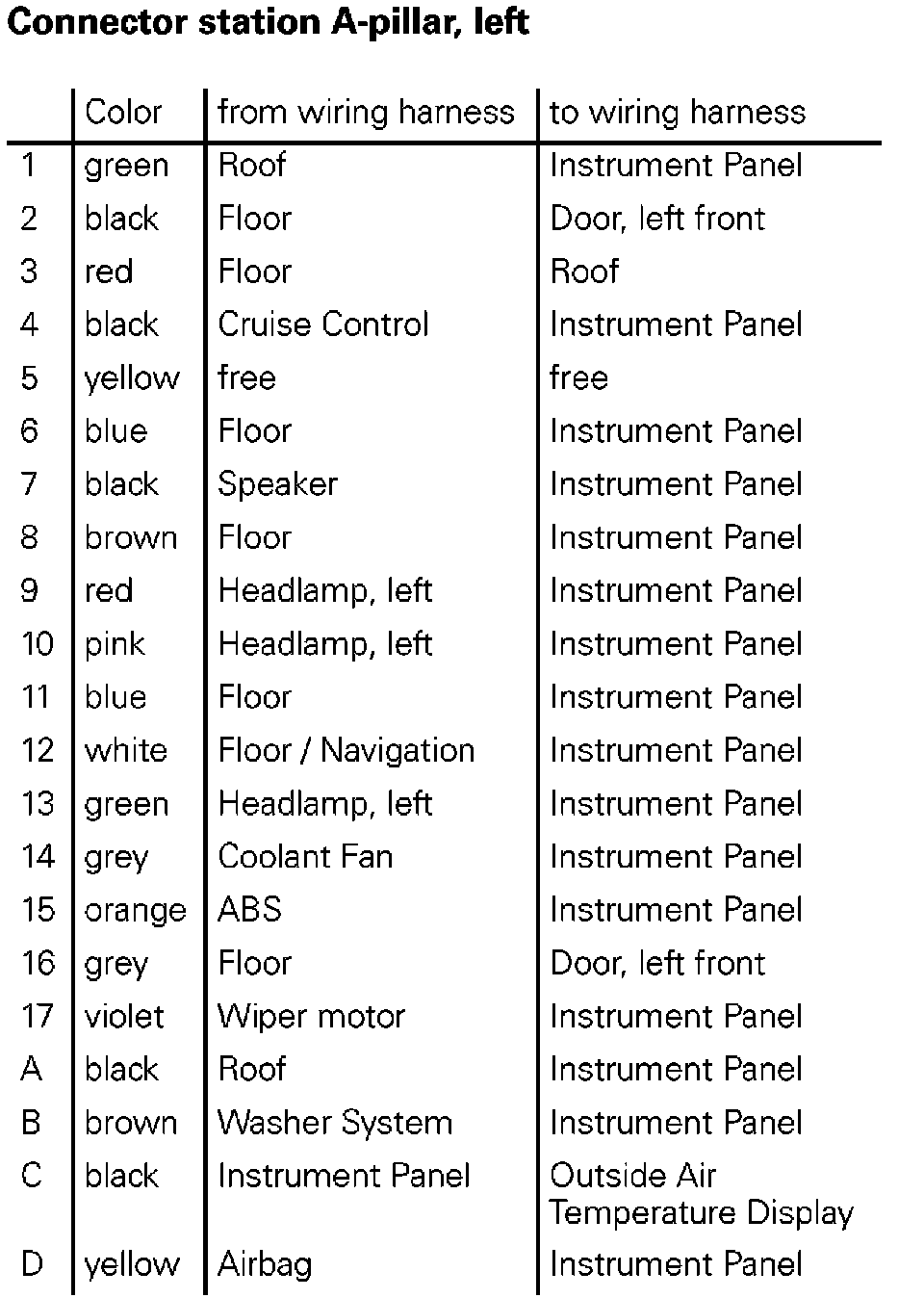

Connector Arrangement Of Connector Station A-Pillar, Left:
Connector Station A-Pillar, Left:
