New Clutch Pedal Switch F36, Installing and Adjusting

New Clutch Pedal Switch F36, installing and adjusting, 01A, 5 SPD. M/T (AWD)





Note:

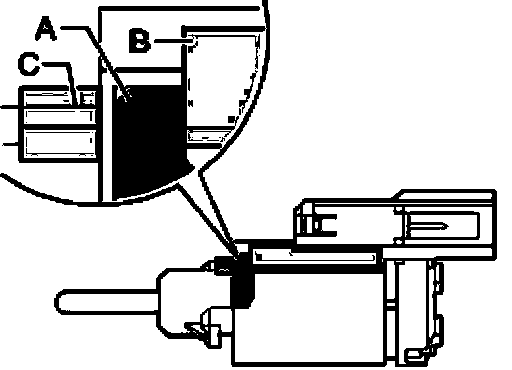

^ Check Clutch Pedal Switch F36 first.
^ Stop - A - must be located in front of section - B -.
^ Stop - C - is then located directly below take-up hook.

If this is not the case, plunger must not be pulled out.

This destroys clutch pedal switch.

Positions of stops - A - and - C - must be corrected:

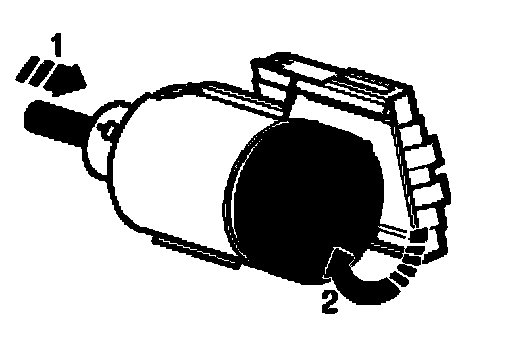

^ Press in plunger until it stops - arrow 1 -.
^ At the same time, rotate upper part of clutch pedal switch in direction of - arrow 2 - until it stops.





^ Now, before installing Clutch Pedal Switch F36, pull out plunger - arrow - completely.

During installation of clutch pedal switch, clutch pedal always remains in rest position (not operated).

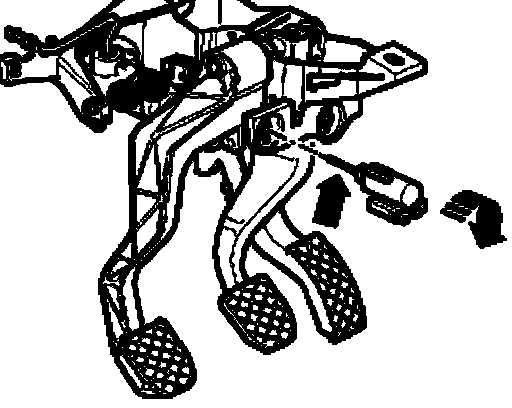

^ Guide Clutch Pedal Switch F36 through assembly hole, press against clutch pedal and secure by rotating 45° toward right.

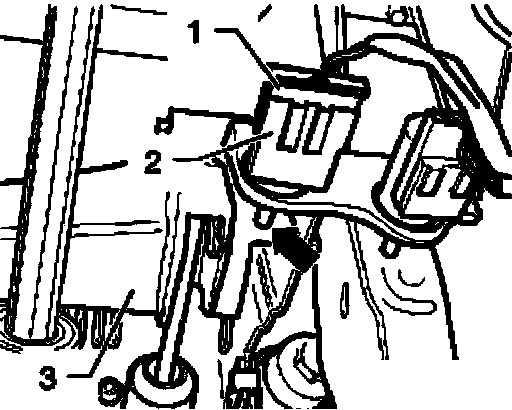

^ Clutch pedal - 3 -must stand in rest position (not operated). Plunger - arrow - of Clutch Pedal Switch F36 - 2 - then makes contact on clutch pedal.
^ Connect connector - 1 - to Clutch Pedal Switch F36.
^ Install storage compartment on drivers side.
