Clutch Pedal Switch F36, Removing and Installing (Clutch Pedal Switch Is Secured Directly to Mounting Bracket)

Clutch Pedal Switch F36, removing and installing (clutch pedal switch is secured directly to mounting bracket), 01A, 5 SPD. M/T (AWD)

In order to assure sufficiently secure seating, Clutch Pedal Switch F36 must not be installed more than once.

Removing
^ Remove storage compartment on drivers side.

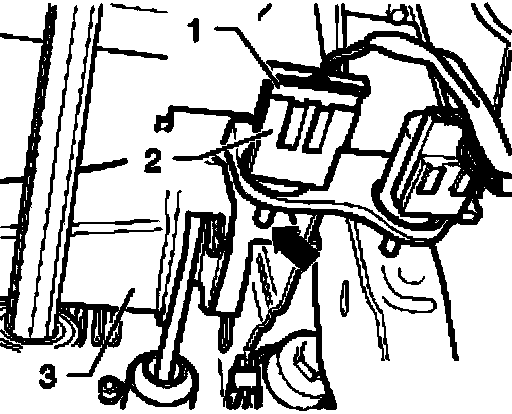

^ Disconnect connector - 1 - at Clutch Pedal Switch F36.
^ Disengage Clutch Pedal Switch F36 - 2 - by rotating 45° counterclockwise and pull out of guide.
