Impact Sensor: Service and Repair

Crash Sensor For Drivers Side/passengers Side Head-level Airbag, Removing And Installing

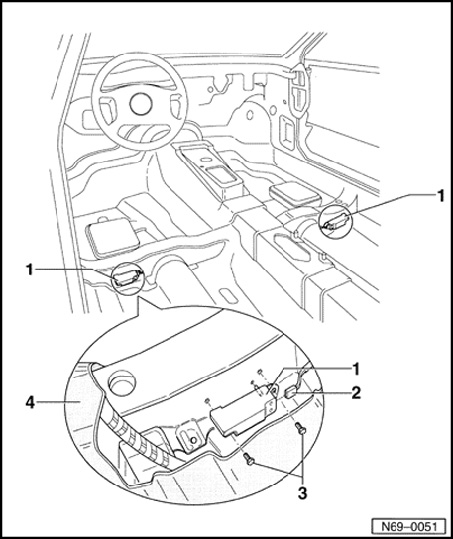

Assembly overview







1 - Driver-side and passenger-side sensor
2 - Connector
3 - Bolt
- 6 Nm

4 - Carpet

Removing

CAUTION: Observe safety precautions for working on airbags.

- Disconnect vehicle battery
- Remove driver/passenger seat (use Airbag adapter VAS 5061).







- Remove carpet - and insulation mat in sensor area.
- Disconnect harness connector - and remove bolts -.

Installing
- Installation is the reverse order of removal.
- Switch ignition on.

CAUTION: Make sure no one is in the vehicle.

- Connect vehicle battery.
