Throttle Position Sensor: Service and Repair

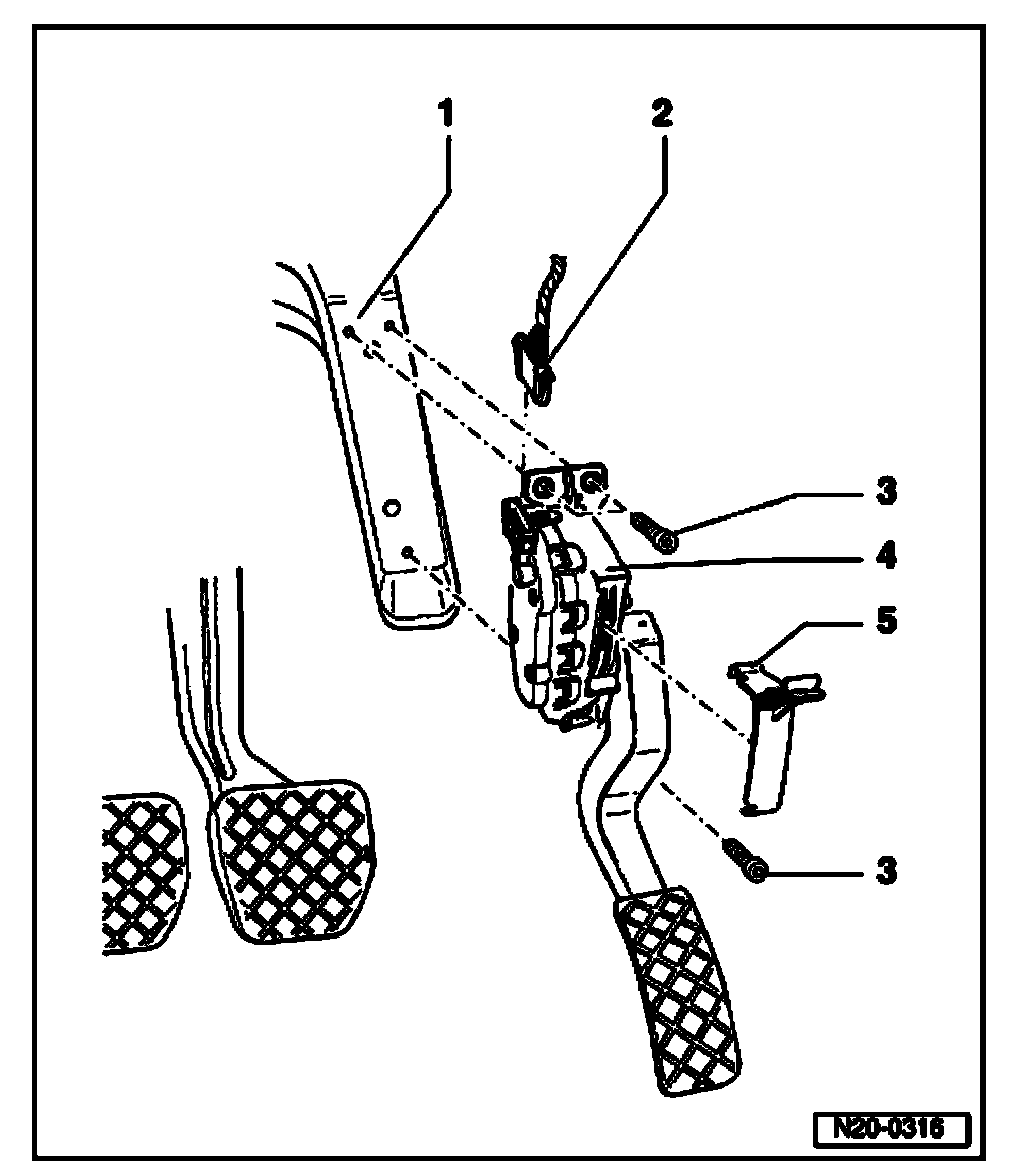

Servicing parts of the electronic Engine Power Control (EPC)







1. Mounting bracket
2. Connector
- Black, 6-pin
- Terminals are gold-plated
3. 10 Nm
4. Throttle Position (TP) Sensor -G79- and Sender -2- for accelerator pedal position -G185-*
- Not adjustable.
- Throttle Position (TP) sensor communicates the driver's intentions to the Engine Control Module (ECM)
5. Bracket
- For footwell cover
- Clipped in at Throttle Position (TP) Sensor
