Left Front Level Control System Sensor -G78-, Removing and Installing

Left Front Level Control System Sensor -G78-, Removing And Installing

Sensor is mounted to stabilizer on left front suspension (in fender well) and is not externally adjustable.

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

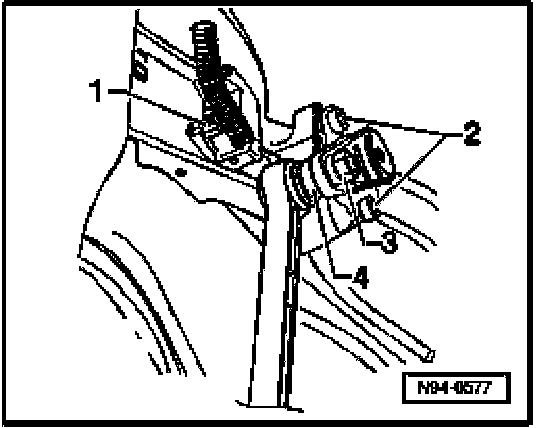

- Disconnect electrical connection -1- at sensor.
- Remove hex bolt -3- (counter-hold at bolt/joint -4-).
- Remove Torx screws -2- and remove sensor.

Installation
Install in reverse order of removal.
- Bring headlight into basic setting
See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service System in mode "Guided Fault Finding".
- Check headlight aim.
