Procedures

Brake servo pressure sensor -G294-, removing and installing
Removing

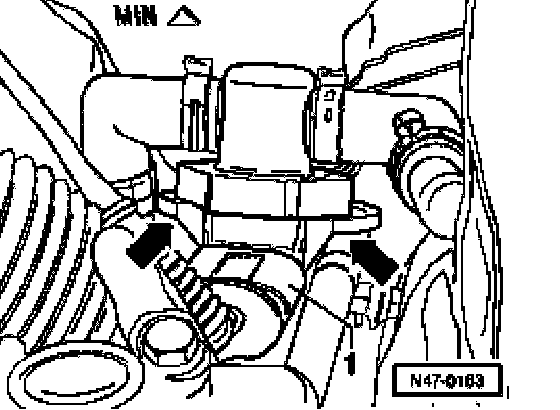

^ Remove plenum chamber cover.





^ Separate connector -1-.
^ Remove bolts -arrows-.
^ Remove brake servo pressure sensor -G294-.

Installing
Install in reverse order.
