Power Mirror Switch: Service and Repair

Mirror Adjustment Switch -E43- With Mirror Selector Switch -E48-, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove door panel
- Disconnect electrical connection.

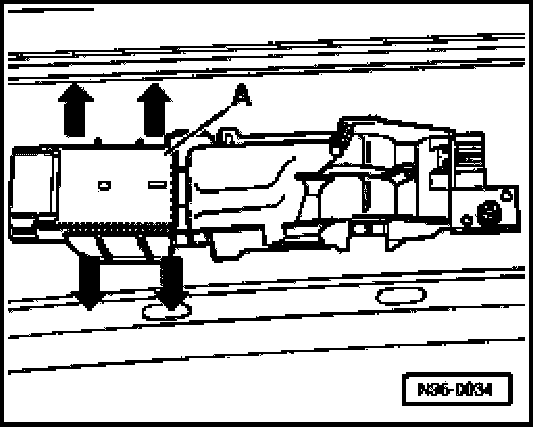

- Bend out switch mounting frame on the long side -A- and push out switches from frame.

Installing
- Insert switch -A- in mounting frame and engage.
- Connect electrical connection.
- Remaining installation in reverse order of removal.
