Rear Center Seatbelt - Assembly Overview

Rear Center Seatbelt - Assembly Overview

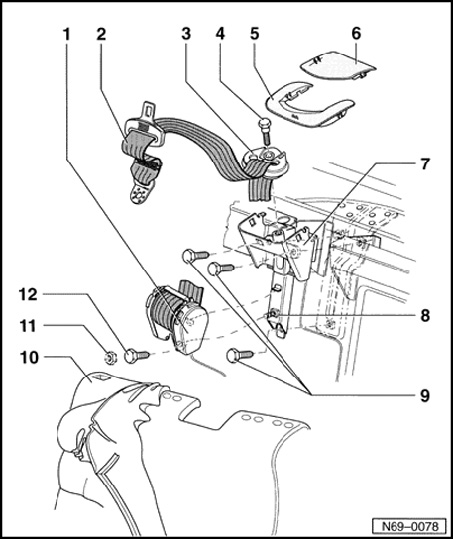

1 - Belt inertia reel
2 - Belt webbing
3 - Belt guide
4 - Hex bolt
- 40 Nm

5 - Seatbelt guide
6 - Concealment cap
7 - Support for seatbelt
- Bolted to solid backrest only; on all other versions, backrest frame is welded to support for seatbelt

8 - Threaded plate
- For solid backrest only; on all other versions a threaded pin is installed

9 - Hex bolts
- Solid backrest only
- 40 Nm

10 - Cushion
11 - Hex nut
- Not with solid backrest

12 - Hex bolt
- Solid backrest only
- 40 Nm
