Rear Center Seatbelt - Assembly Overview

Rear Center Seatbelt - Assembly Overview

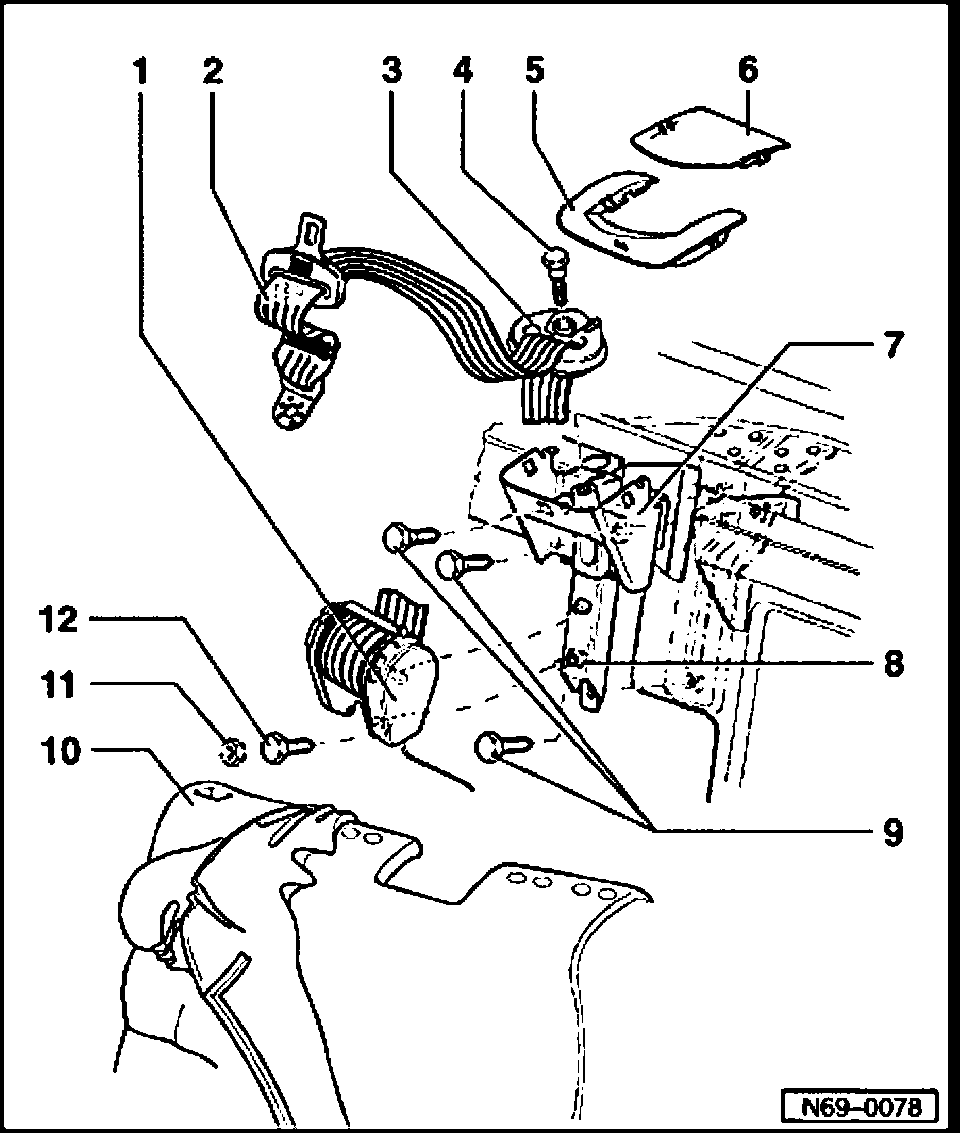

1. Belt inertia reel
2. Belt webbing
3. Belt guide
4. Hex bolt
- 40 Nm
5. Seatbelt guide
6. Concealment cap
7. Support for seatbelt
- Bolted to solid backrest only; on all other versions, backrest frame is welded to support for seatbelt
8. Threaded plate
- For solid backrest only; on all other versions a threaded pin is installed
9. Hex bolts
- Solid backrest only
- 40 Nm
10. Cushion
11. Hex nut
- Not with solid backrest
12. Hex bolt
- Solid backrest only
- 40 Nm

Automatic belt retractor, removing
- Remove seatbench backrest.

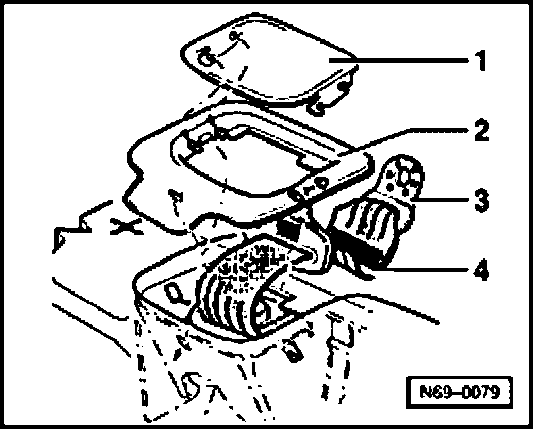

- Pry off cover cap -1 - from seatbelt guide - 2 -.
- Unscrew belt end fitting - 3 - from floor assembly (40 Nm).
- Unclip seatbelt guide - 2 - and remove from belt - 4 -.
- Remove cover and cushion for seatbench backrest.

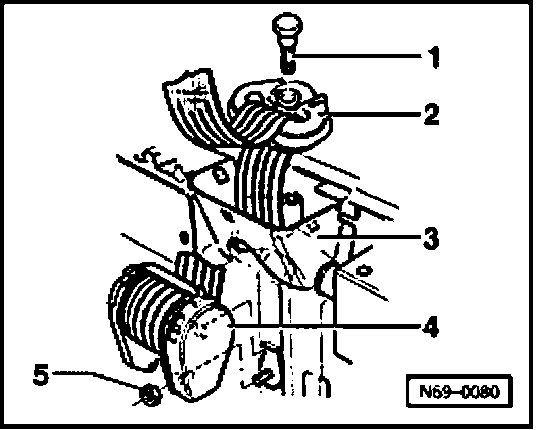

- Remove hex bolt -1 - (40 Nm) and belt guide - 2 - from support - 3 -.
- Remove hex nut - 5 - (40 Nm) or hex bolt (solid backrest) and unhook belt retractor - 4 - from support - 3
- Remove seatbelt with belt guide from support - 3 - downward.

NOTE: To unreel seatbelt, automatic belt retractor must be held in installation position.
