Front Seatbelts With Belt Tensioner - Assembly Overview - II

Front Seatbelts With Belt Tensioner - Assembly Overview 10.00 >

CAUTION: Belt tensioner units must be removed before starting any separation work, repairs or bulge corrections.

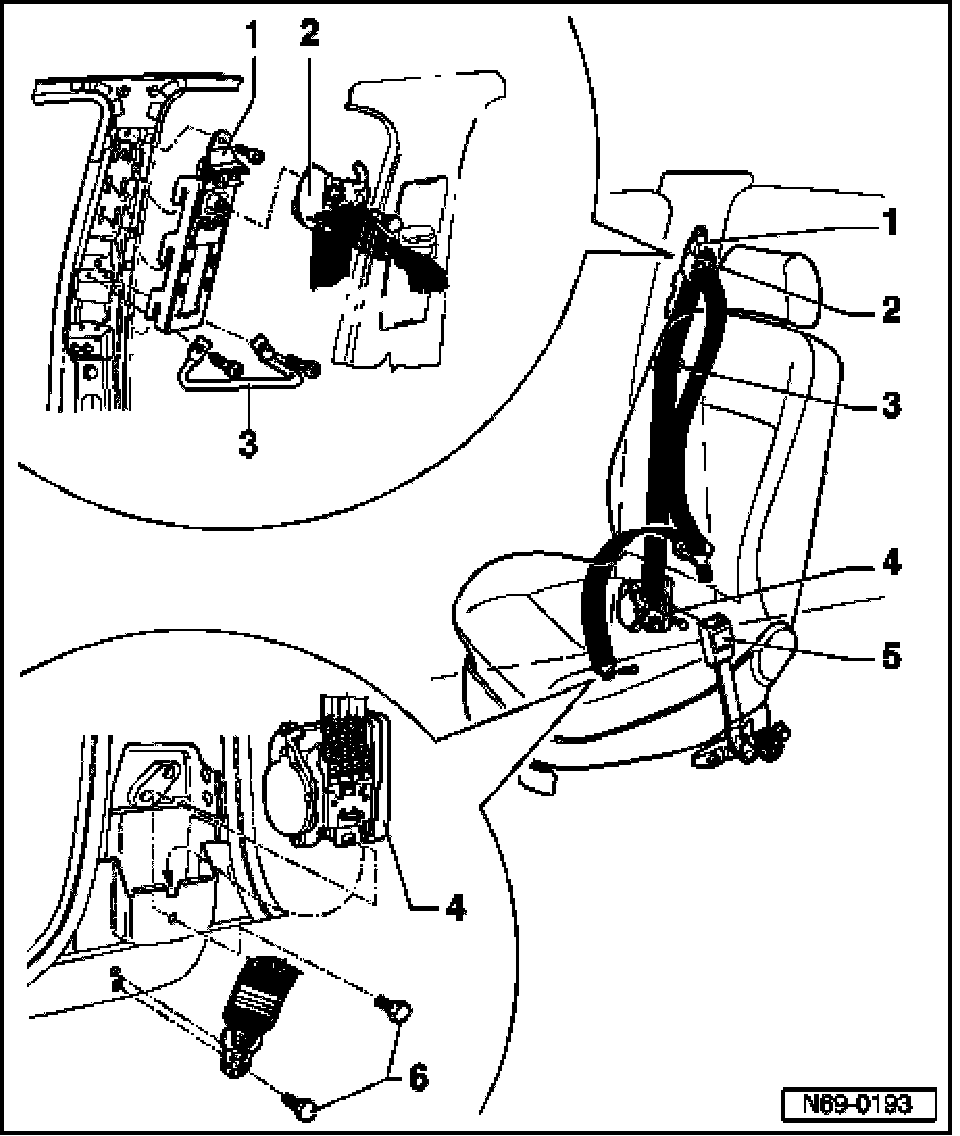

1. Seatbelt height adjuster
- To remove height adjustment mechanism, upper B-pillar trim must be removed first
2. Anti-twist stop
3. Belt guide
- Secured with 2 Phillips-head screws.
- Tightening torque: 1.5 Nm
4. Seatbelt with belt tensioner
- Trim of "lower B-pillar" and sill panel must be removed before removal.
- Retaining tab determines position of automatic belt retractors
5. Front belt buckle
6. Hex bolt
- 40 Nm
