Seat Belt Buckle: Service and Repair

Belt Buckle, Removing And Installing

Removing
- Remove seat
- Front seat.
- "Recaro seat".
- For vehicles with electric request to buckle up, disconnect wiring harness from seat frame.

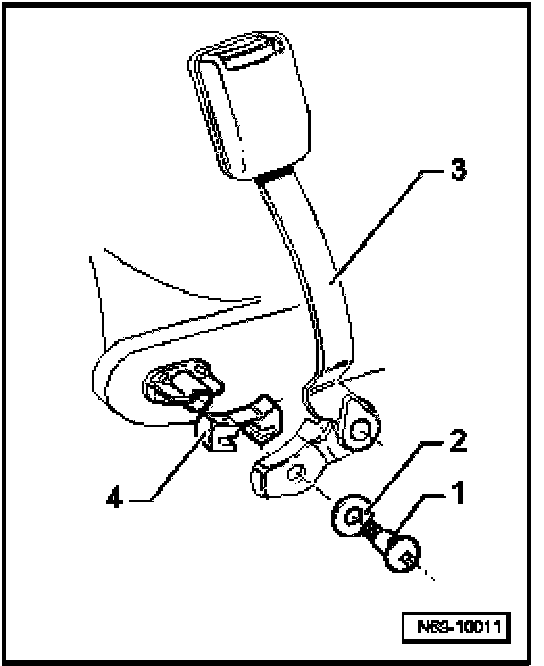

- Remove bolt -1 - (24 Nm).
- Remove spring washer - 2 -, belt buckle - 3 - and thrust piece - 4 - from seat frame.

Installing
Installation is the reverse order of removal.
