Seatbench With Integrated Child Seat, Retrofitting (Wagon) (Up to CW 31/98)

Seatbench With Integrated Child Seat, Retrofitting (Wagon)

Vehicles up to CW 31/98
- Remove seatbench.







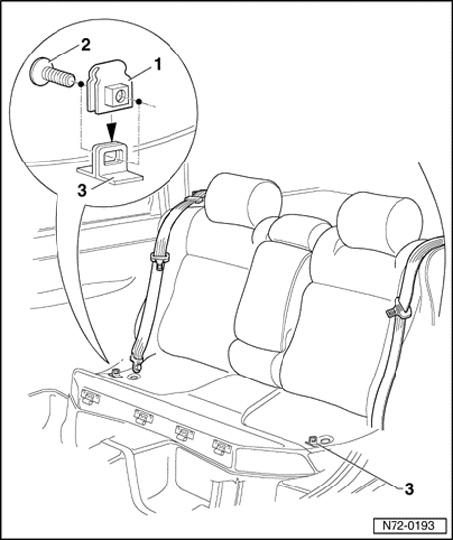

- Bolt on adapter - 1 - left and right with bolt - 2 - (11 Nm) to guide - 3 -.

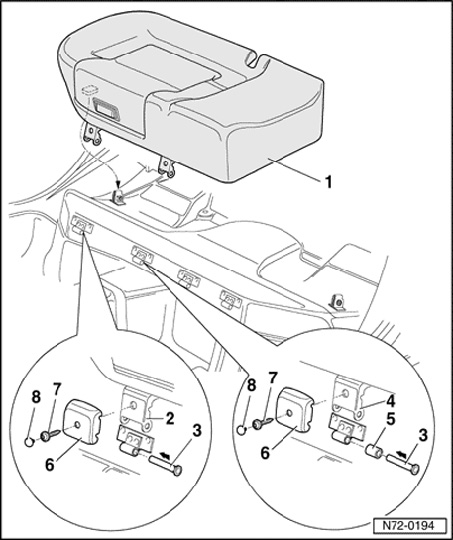

- Position right seatbench - 1 - in installation position in vehicle.
- Secure outer seat hinge - 2 - to body using pin - 3 -.
- Secure inner seat hinge - 4 - to body using spacer piece - 5 - and pin - 3 -.
- Secure caps - 6 - with bolts - 7 - (2.7 Nm) to seat hinges - 2 - and - 4 -.
- Attach caps - 8 - onto bolts - 7 -.

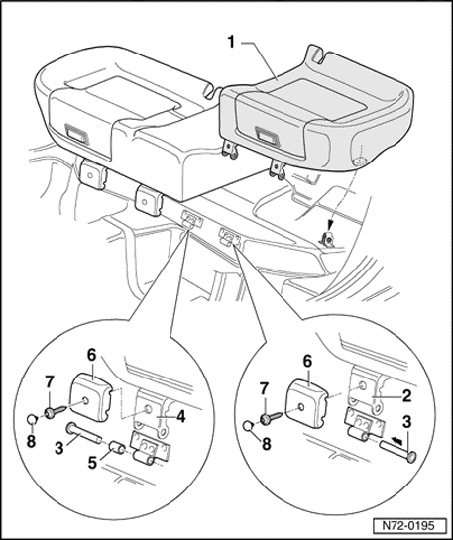

- Bring left seatbench - 1 - in installation position in vehicle.
- Secure outer seat hinge - 2 - to body using pin - 3 -.
- Secure inner seat hinge - 4 - to body using spacer piece - 5 - and pin - 3 -.
- Secure caps - 6 - with bolts - 7 - (2.7 Nm) to seat hinges - 2 - and - 4 -.
- Attach caps - 8 - onto bolts - 7 -.







- Remove headrests.

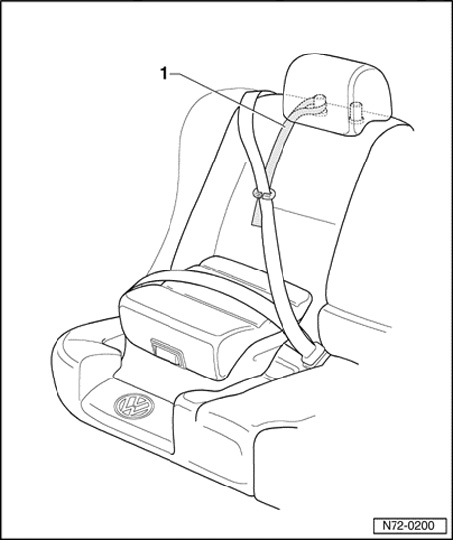

- Slide seatbelt guide - 1 - over outer headrest rod.
- Install headrests.
