Seatbench With Integrated Child Seat, Retrofitting (Wagon) (As of CW 32/98)

Seatbench With Integrated Child Seat, Retrofitting (Wagon)

Vehicles as of CW 32/98







- Remove seatbench.

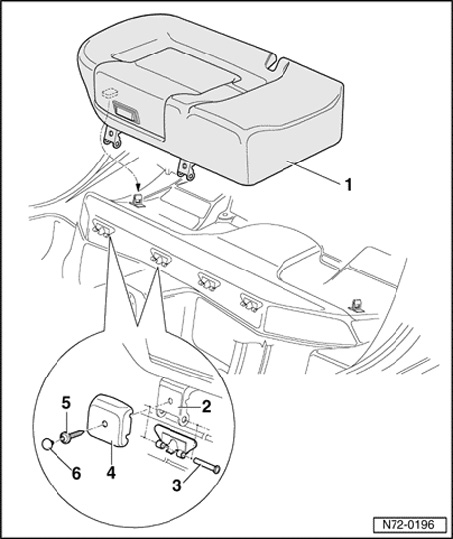

- Position right seatbench - 1 - in installation position in vehicle.
- Secure seat hinges - 2 - to body using pin - 3 -.
- Secure caps - 4 - with bolts - 5 - (2.7 Nm) to seat hinges - 2 -.
- Attach caps - 6 - onto bolts - 5 -.

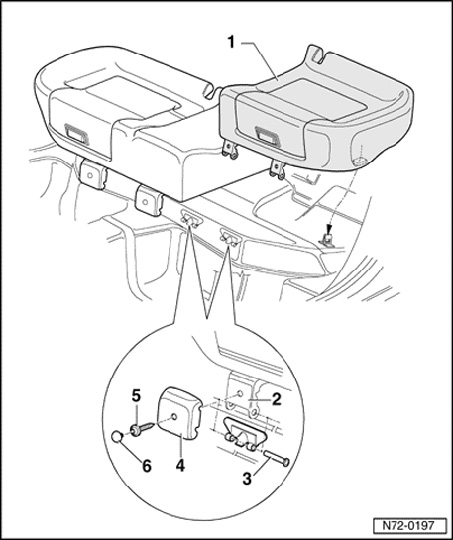

- Bring left seatbench - 1 - in installation position in vehicle.
- Secure seat hinges - 2 - to body using pin - 3 -.
- Secure caps - 4 - with bolts - 5 - (2.7 Nm) to seat hinges - 2 -.
- Attach caps - 6 - onto bolts - 5 -.







- Remove headrests.
- Slide seatbelt guide - 1 - over outer headrest rod.
- Install headrests.
