Seatbench With Integrated Child Seat, Retrofitting (Up to CW 31/98)

Seatbench With Integrated Child Seat, Retrofitting

Vehicles up to CW 31/98
- Remove seatbench.

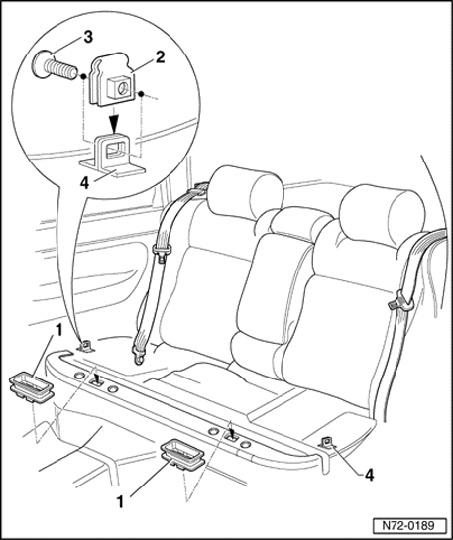

- Clip in two grommets - 1 -.
- Bolt on adapter - 2 - left and right with bolt - 3 - to guide - 4 -.







- Position seatbench with integrated child seat in installation position in vehicle.

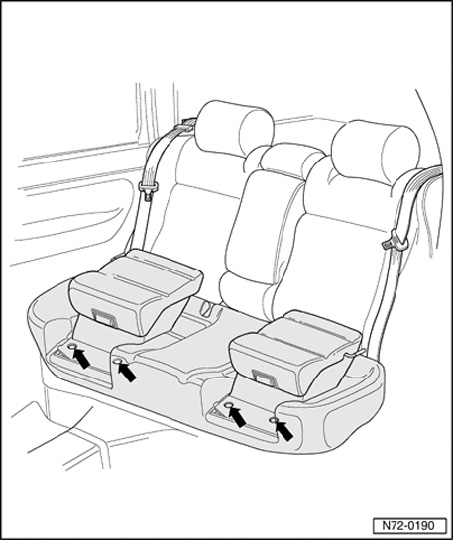

- Mark positions for bores to be created with punch indentation - arrows -.
- Remove seatbench.
- Drill four holes - arrows - (dia. 9 mm).

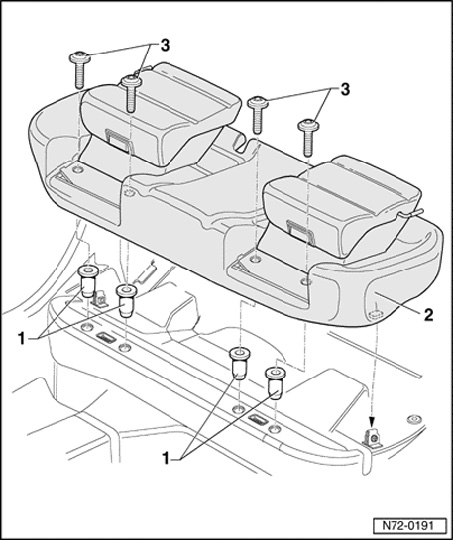

- Pull in internally threaded pop rivets - 1 - using riveting pliers VAS 5073.
- Install seatbench - 2 - and secure with bolts - 3 -.

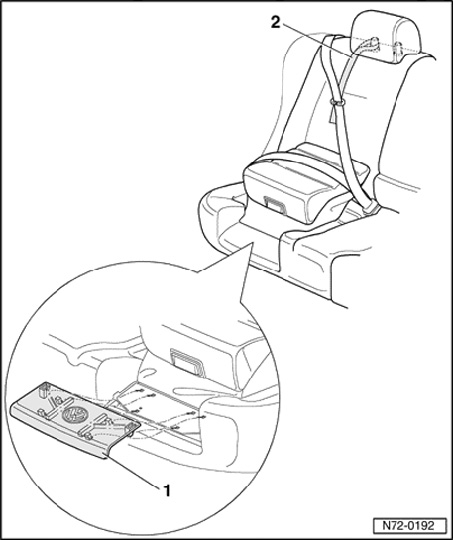

- Clip cap - 1 - left and right.
- Remove headrests.
- Slide seatbelt guide - 2 - over outer headrest rod.
- Install headrests.
