Seatbench With Integrated Child Seat, Retrofitting (As of CW 32/98)

Seatbench With Integrated Child Seat, Retrofitting

Vehicles as of CW 32/98
- Remove seatbench.







- Clip in two grommets - 1 -.







- Pull in internally threaded pop rivets - 1 - using riveting pliers VAS 5073.
- Install seatbench - 2 - and secure with bolts - 3 -.

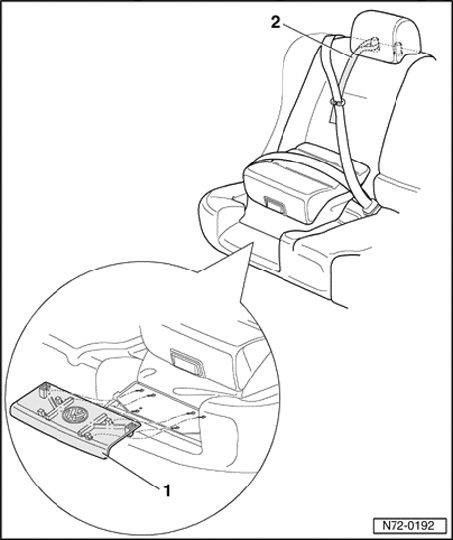

- Clip cap - 1 - left and right.
- Remove headrests.
- Slide seatbelt guide - 2 - over outer headrest rod.
- Install headrests.
