Drivers Side/Passengers Side Head-Level Airbag, Removing and Installing

Drivers Side/passengers Side Head-level Airbag, Removing And Installing

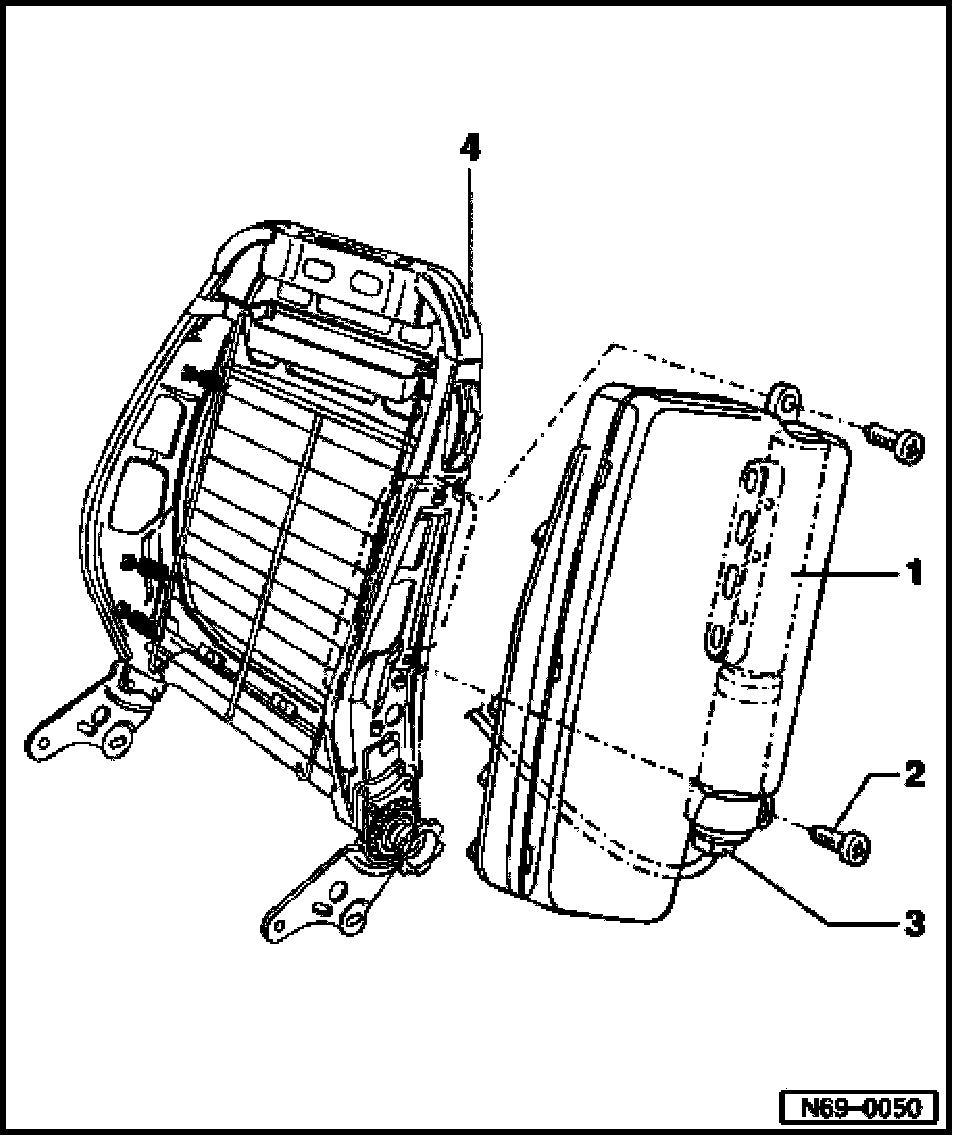

Assembly Overview
1. Drivers and passengers side airbags
2. Bolt
- 7 Nm
3. Connector
4. Backrest frame

Removing

CAUTION: Observe safety precautions for working on airbags.

- Disconnect vehicle battery.
- Remove backrest frame.
- Remove bolts -.

CAUTION: Electrostatic charges may result in involuntary deployment of the airbag. Therefore, the mechanic must be electrostatically discharged before disconnecting ignition- and Ground (GND) wires. This is done e.g. by briefly grasping the chassis or door striker.

- Disconnect connector - from airbag unit -.
- Pull off airbag unit - from backrest frame -.

Installing
- Installation is the reverse order of removal.
- Switch ignition on.

CAUTION: Make sure no one is in the vehicle.

- Connect vehicle battery.
