01V, 5 SPD. A/T (AWD)

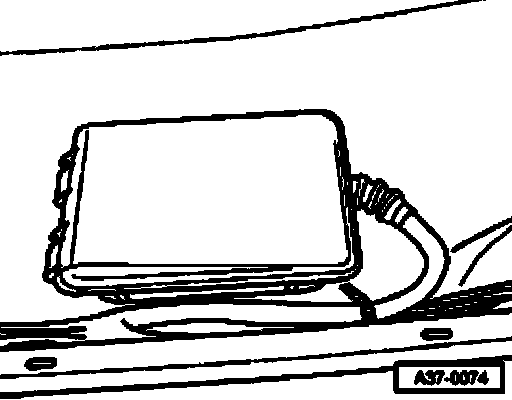

Component location of Transmission Control Module (TCM) J217, 01V, 5 SPD. A/T (AWD)





Control module is located in front of right seat, under carpet in footwell.
