Shift Interlock Solenoid: Locations

Shift Lock Solenoid N110, 01V, 5 SPD. A/T (AWD)

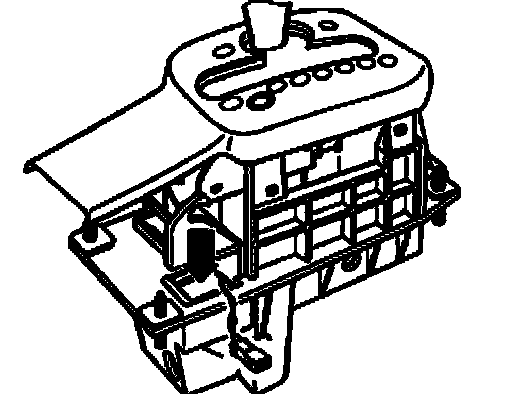

Installation location: Shift lock solenoid - arrow - is located in the selector mechanism housing.
