Fuel Distributor: Service and Repair

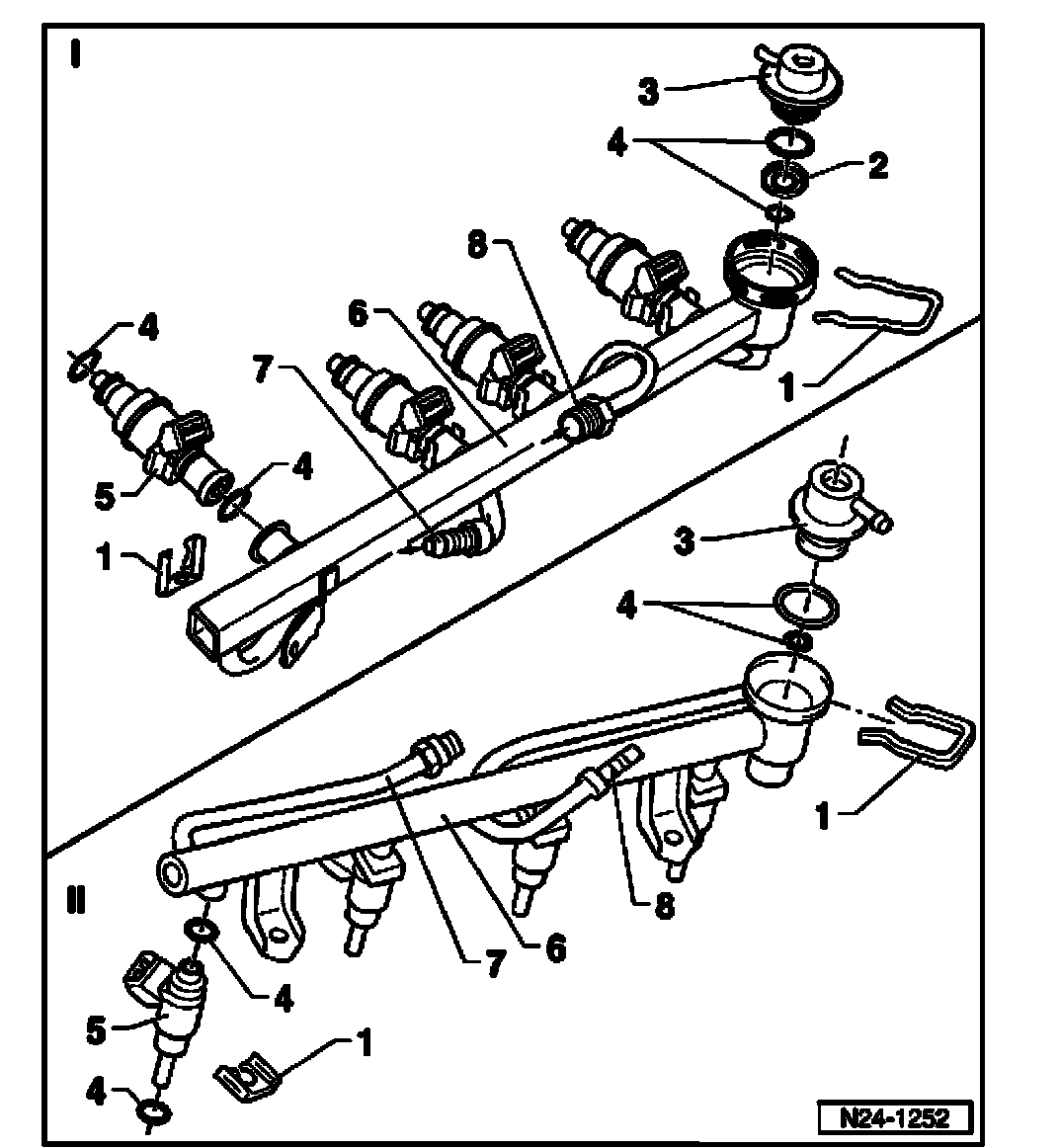

Fuel Distributor With Fuel Injectors, Disassembling And Assembling (Vehicles With Engine Code ATW, AUG, AWM)







I. Engine code ATW
II. Engine code AUG, AWM

1. Retaining clip
- Make sure clip is correctly seated on fuel injector and fuel rail
2. Sieve
3. Fuel pressure regulator
4. O-ring
- Replace if damaged
5. Fuel injectors (Cylinder 1 Fuel Injector -N30- through Cylinder 4 Fuel Injector -N33-)*
- Resistance 12 to 17 ohms
6. Fuel distributor
- Tighten to 10 Nm
7. Connection, return line
8. Connection, supply line
