Evaporative Emissions (EVAP) System, Overview - I

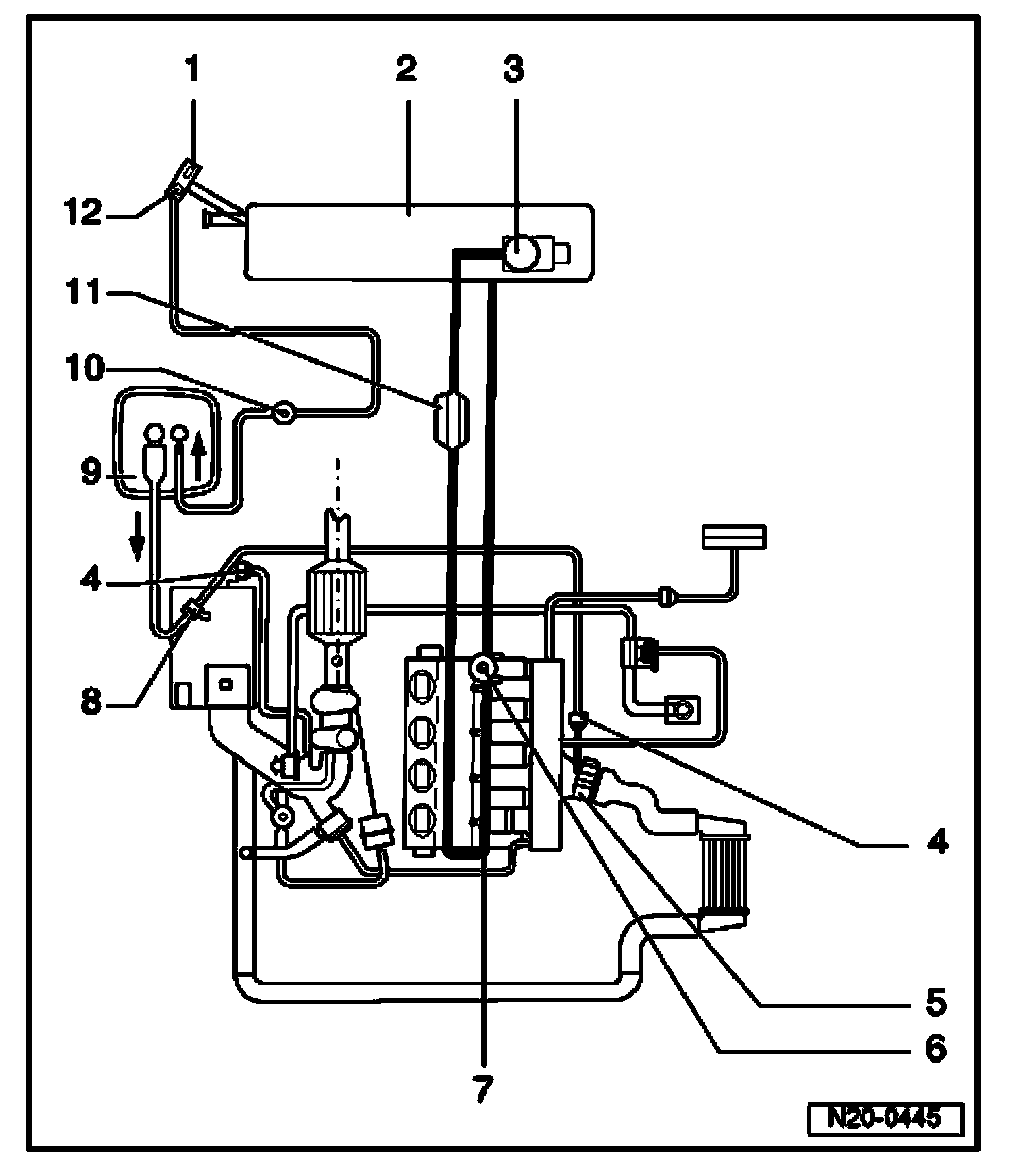

Evaporative Emissions (EVAP) System, Overview







1. Fuel filler door unit
2. Fuel tank
3. Fuel delivery unit
4. Non-return valve
5. Throttle Valve Control Module J338
6. Fuel pressure regulator
7. Fuel distributor with Fuel Injectors
8. Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
9. EVAP canister
10. Pressure retention valve
11. Fuel filter
12. Gravity valve
