Components of the Evaporative Emissions (EVAP) System, Overview - II

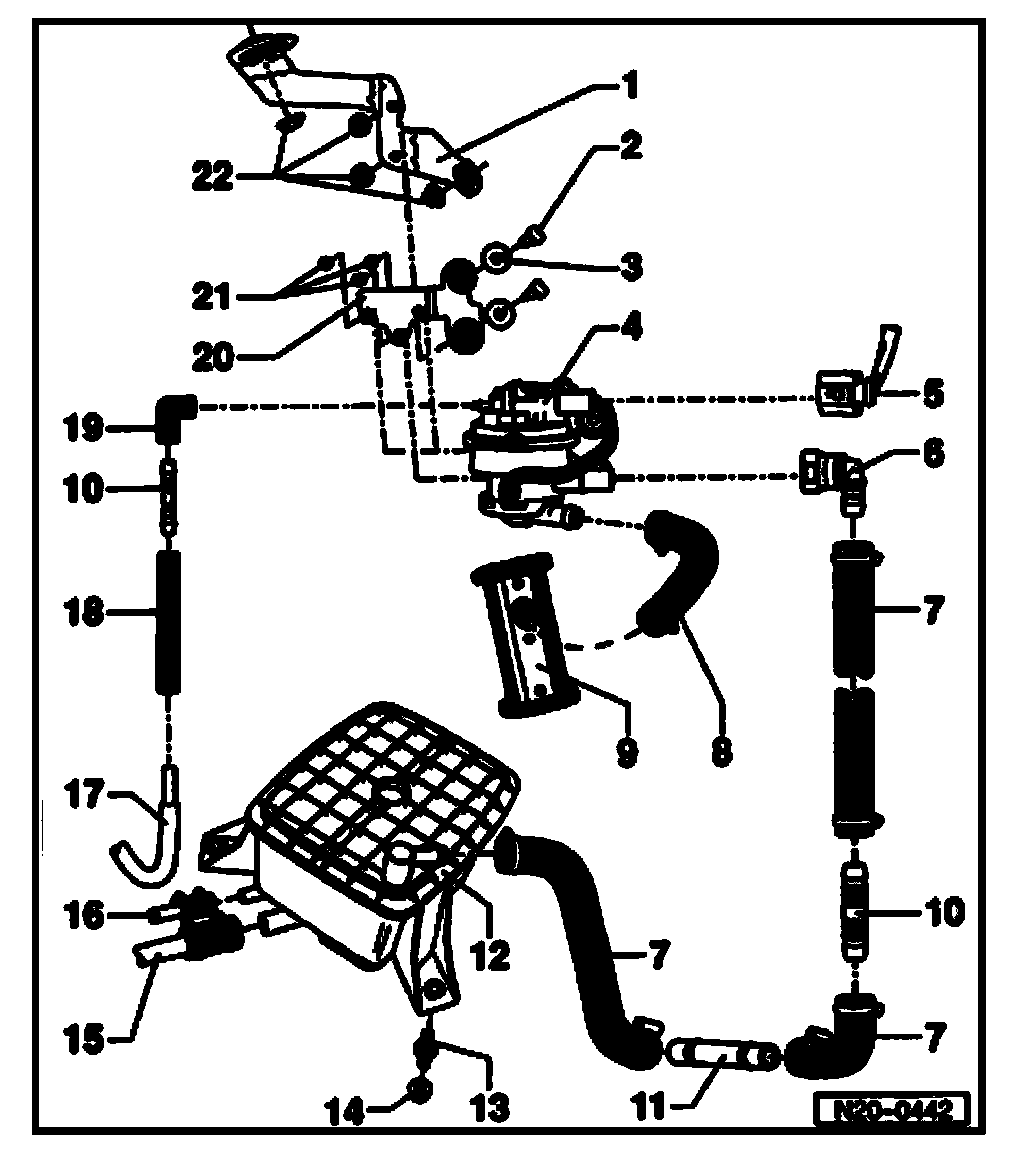

Components Of The Evaporative Emissions (EVAP) System, Overview







1. Bracket for leak detection pump
- Bolted to body
2. Bolt
3. Washer
4. Leak Detection Pump (LDP) V144
- In left rear wheel housing behind wheel housing liner
5. Connector
- 3-pin
6. Coupling
- Press together at front to release
7. Connecting hose
- Pressure side
8. Connecting hose
- Suction side
9. Air filter for Leak Detection Pump (LDP) V144
10. Connecting piece
11. Connecting pipe
12. EVAP canister
- In spare wheel well on vehicle floor
- Fuel system, checking for proper seal
13. 15 Nm
14. 10 Nm
15. Vent line
16. To Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
17. Vacuum line
18. Connecting hose
- Vacuum side
19. Connection angle
20. Bracket for leak detection pump
21. 2 Nm
22. 8 Nm
