Recirculating Valve For Turbocharger, Checking

Recirculating Valve For Turbocharger (Vehicles With Engine Code ATW, AUG, AWM), Checking

Valve opens between connection to intake manifold and connection to deceleration shut-off valve with no voltage. Connection to vacuum reservoir is closed.

Test sequence
- Switch ignition off.
- Disconnect connector from Recirculating valve for turbocharger -N249-.

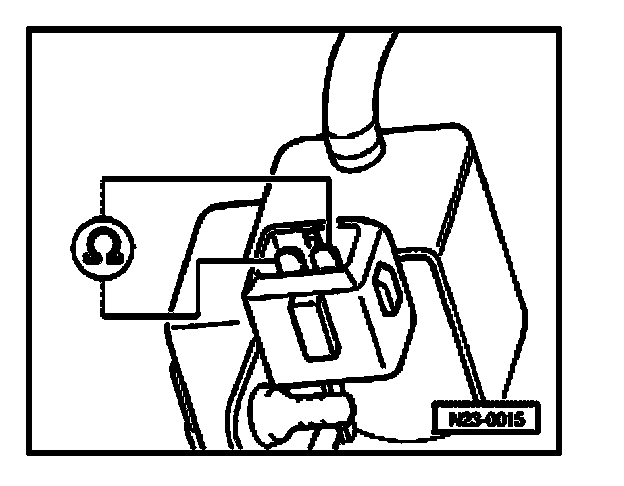

- Measure resistance between terminals of valve.
Specified value: 25 to 35 ohms

If specified value is not obtained:
- Replace Recirculating valve for turbocharger -N249-.

If specified values are obtained:
- Connect test box to control module wiring harness, connect test box for wiring test. Test Box, Connecting For Wiring Test

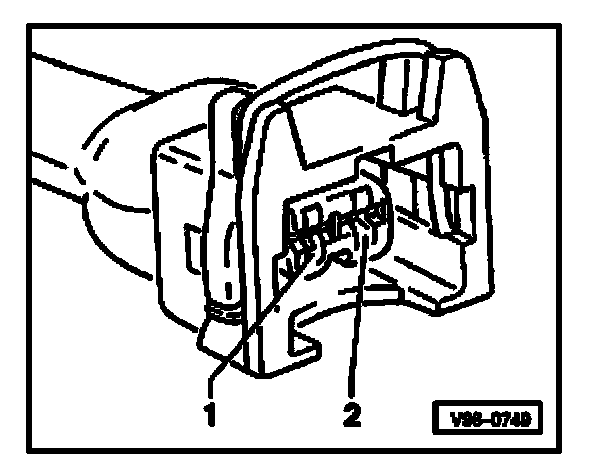

- Check wire between test box socket 105 + 2-pin connector terminal 2 for open circuit according to wiring diagram.
Wire resistance: max: 1.5 ohms
- Check the wire for short circuit to B+ and Ground (GND).

If no malfunctions are found in wire:
- Check wire between 2-pin connector terminal 1 and the Fuel Pump (FP) Relay -J17- for open circuit according to wiring diagram.
Wire resistance: max: 1.5 ohms

If no malfunctions are found in wires:
- Replace Engine Control Module (ECM).
