Campaign Work Procedure

Campaign Work Procedure

If there are questions regarding the work procedure, contact the Campaign Helpline.

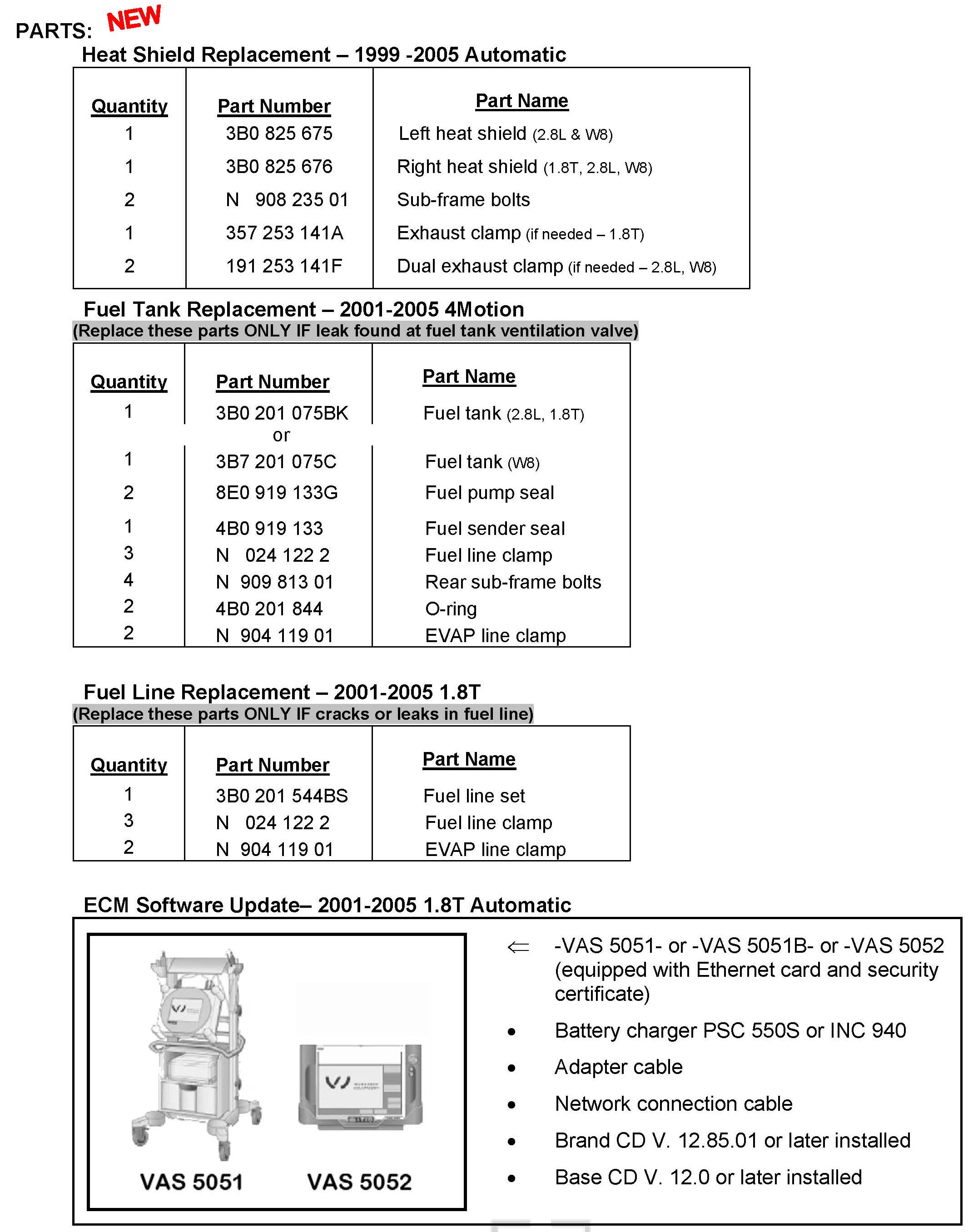

PARTS: NEW

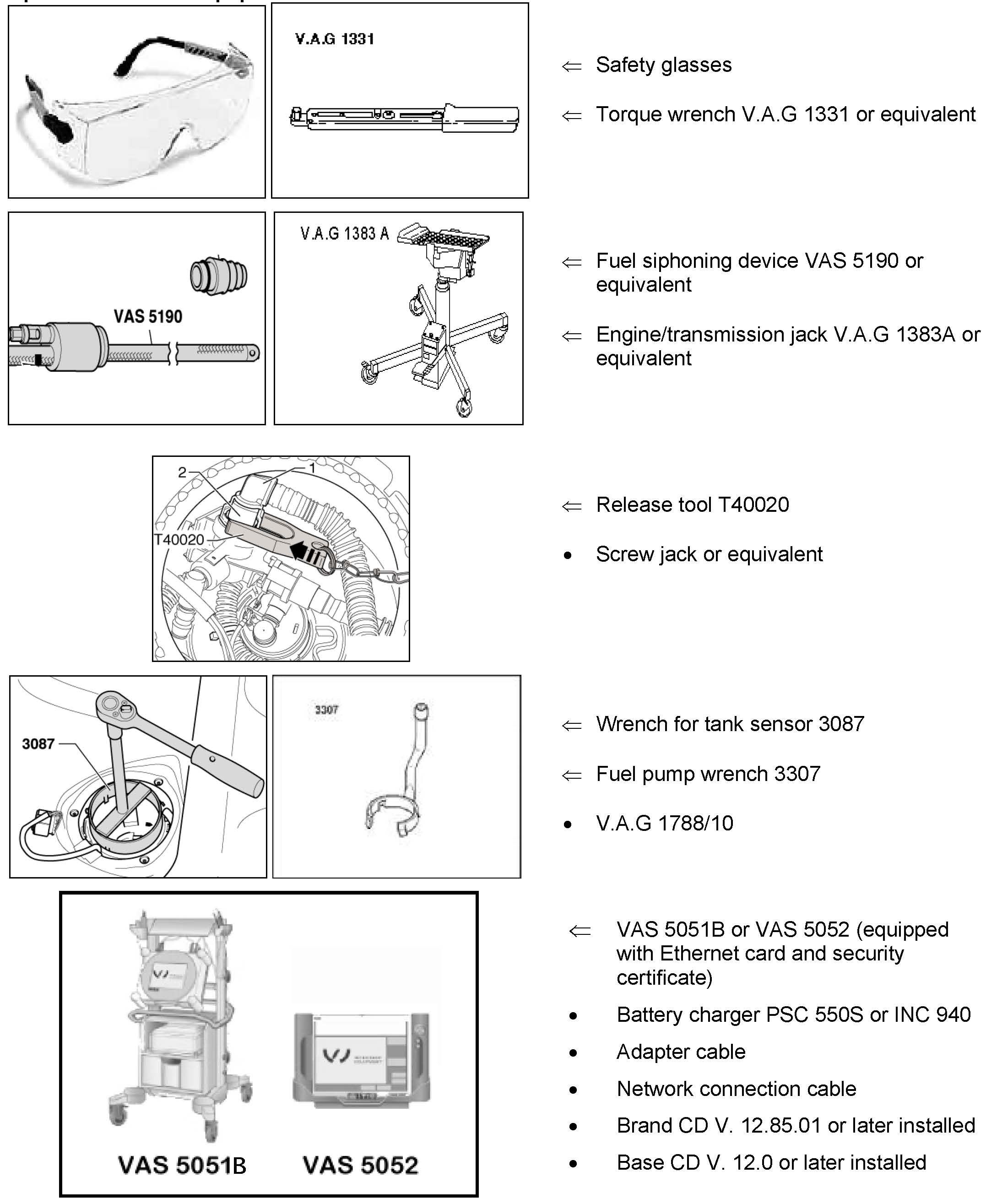

Special Tools and Equipment

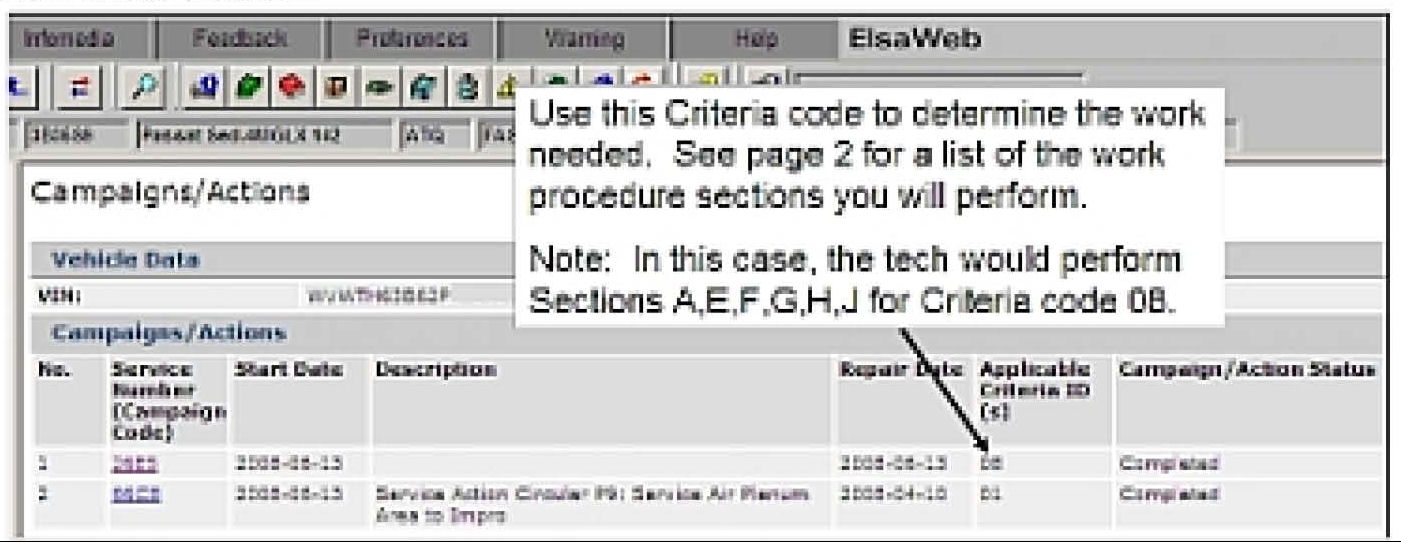

Criterion Selection Instruction
