Ribbed Belt, Removing and Installing

Special tools and equipment





^ 3204 drift

Removing ribbed belt
- For vehicles with A/C system, remove ribbed belt for A/C compressor, Refer to A/C.
- Mark rotational direction of ribbed belt.

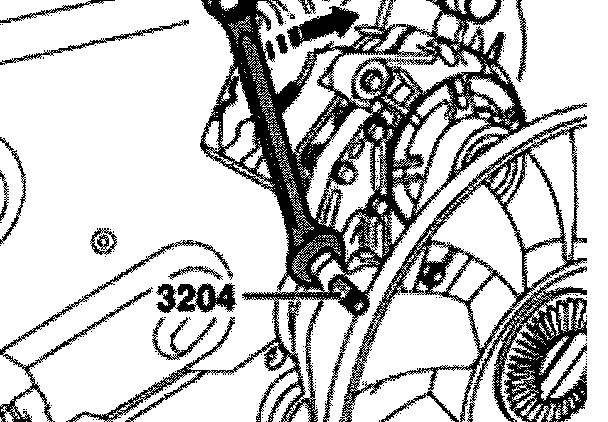

- Move tensioner in direction of arrow to release tension on ribbed belt.
- Secure tensioning device using 3204 drift.
- Remove or attach ribbed belt.

Note: When installing ribbed bell, be sure that it is seated correctly on pulley.

- Start engine and check path of belt.
