Wheel Centering Seat, Protecting Against Corrosion

Wheel centering seat, protecting against corrosion
Valid for light weight alloy- and steel wheels

When replacing wheel, wheel centering seat should be waxed with

spray wax D 322 000 A2

In order to prevent corrosion between wheel centering seat and wheel.
^ Remove wheel.
^ Always clean wheel centering seat at wheel hub and center of rim.

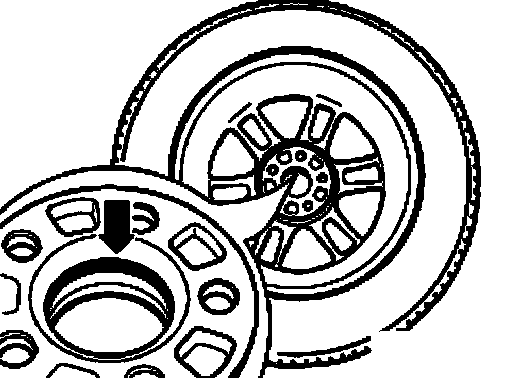

^ Apply the wax to the area of the centering seat with a brush - arrow -.

Make absolutely sure that wax is applied only to the centering seat - arrow - and not the contact surface of the wheel. Consequences of this would be a soiling of the brakes during vehicle operation and poor braking performance would result.

CAUTION: Wheel bolts, contact surfaces of wheel/wheel hub and threads in wheel hub must not be waxed. Threads of wheel bolts must never be handled with grease or corrosion protection agents!

^ Install wheel and tighten=> Wheel mounting.
