Control Module For Headlight Beam Adjusting -J431-, Removing and Installing

Control Module For Headlight Beam Adjusting -J431-, Removing And Installing

Control module is mounted in left luggage compartment behind left rear luggage compartment trim.

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove left rear luggage compartment trim
- If necessary, remove CD changer and changer mounting

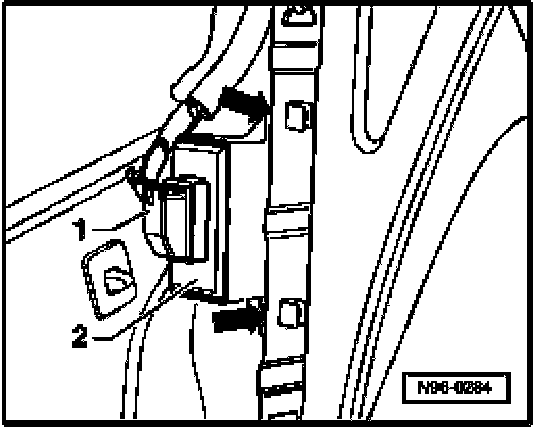

- Disconnect electrical connection -1-, remove screws -arrows- and remove control module -2-.

Installing
Install in reverse order of removal.
- After installation, check function of headlights.
- Code control module and bring headlight into basic setting.
See VAS 5051 Vehicle Diagnostic Testing and Information System or VAS 5052 Vehicle Diagnostic and Service System in mode "Guided Fault Finding".
