Headlight Bulbs, Replacing

Headlight Bulbs From 10.00, Replacing

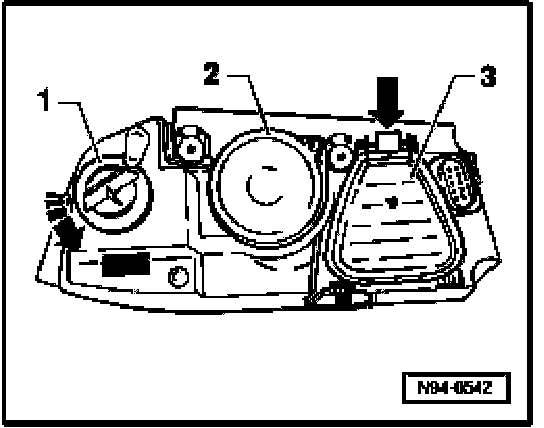

Parking Lamp -M1-/ -M3-, replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove large cover cap on rear of headlight housing.







- Pull out socket -1- (with bulb) from headlight housing.
- Pull out bulb from socket and replace bulb.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Reinstall socket (with bulb). Push in all the way to stop.
- Reinstall cover cap.
- Check function of parking light.

Low Beam Headlamp -M29-/ -M31-, replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove small cover cap from rear of headlight housing.

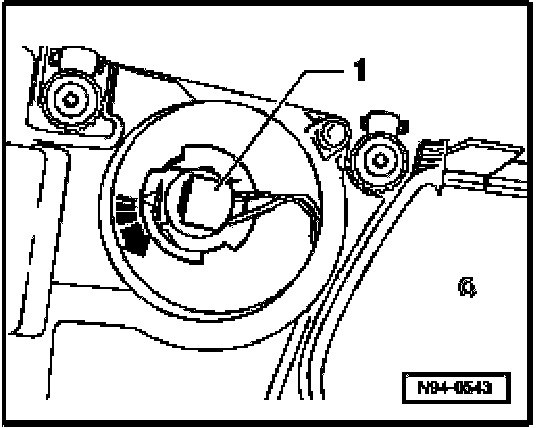

- Turn socket (with connector) -1- counterclockwise -arrow- and pull out of headlight housing.

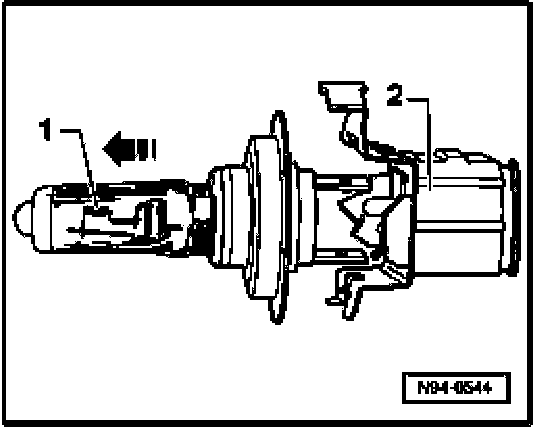

- Pull bulb -1- out of socket -2- in direction of -arrow-
- Replace bulb.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Reinstall socket (with connector) into headlight housing. Lock socket in place by turning clockwise.
- Reinstall cover cap and check headlight (bulb) function.

High Beam Headlamp -M30- / -M32-, replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

- Remove large cover cap from rear of headlight housing.







- Turn socket (with connector) -1- counterclockwise -arrow- and pull out of headlight housing.







- Pull bulb -1- out of socket -2- in direction of -arrow-
- Replace bulb.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Reinstall socket (with connector) into headlight housing. Lock socket in place by turning clockwise.
- Reinstall cover cap.
- Check headlight (bulb) function.

Turn Signal Lamp -M5- / -M7-, replacing

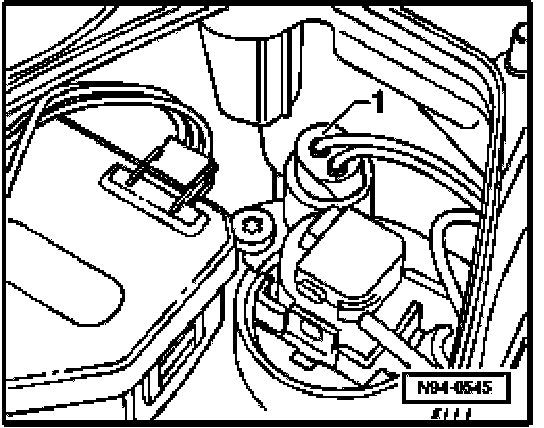

NOTE: It is not necessary to remove the headlight housing in order to replace the turn signal bulb. Headlight housing is shown removed here for illustration purposes only.

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

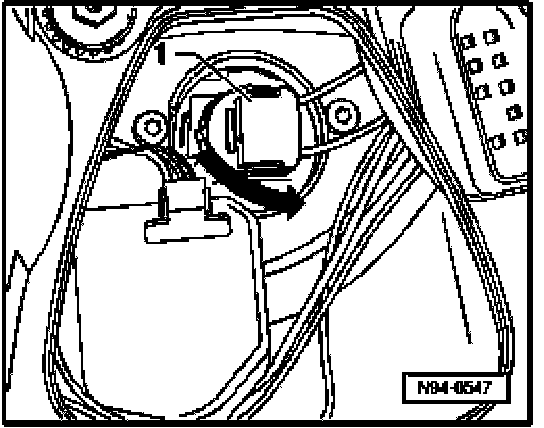

- Turn socket (with connector) -1- counterclockwise -arrow- and pull out of headlight housing.
- Replace bulb.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Reinstall socket (with connector) into headlight housing. Lock socket in place by turning clockwise.
- Check turn signal (bulb) function.
