Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp Bulb From 10.00, Replacing

Removing
- Remove fog lamp assembly.
- Remove cover cap from rear of fog lamp housing by turning.

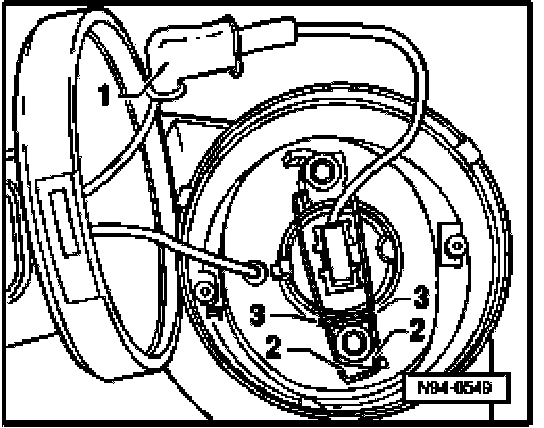

- Disconnect electrical connection -1-
- Unclip retainer -2- from lugs -3- and flip over to side.
- Pull out bulb from housing.

Installing

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Insert new bulb (making sure that the bulb mounting aligns with the locating lugs in the housing) and re-clip retainer.
- Reinstall fog lamp housing.
- Check fog lamp function/aim.
