Glove Box Lamp: Service and Repair

Glove Compartment Light -W6-, Removing And Installing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

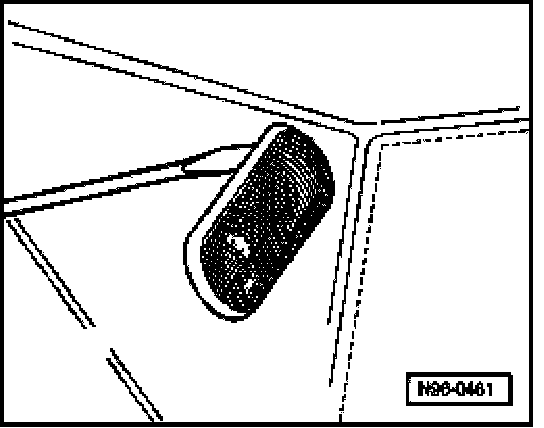

- Insert screwdriver behind lens at top and carefully pry out.

NOTE: During removal, ensure light switch-off lever is not damaged.

- Carefully pull out lens with bulb holder (unclip and disconnect electrical connection if necessary).
- Replace with 12V/3W bulb

Installing

NOTE:
- Note orientation of switch when installing: light switch-off lever must be in down position.
- To ease illustration, glove compartment is shown removed.







- Insert lens with bulb holder in glove box and locate properly.

Always perform a functional check of glove compartment light switch. Light must not be on with lid closed.
