High-Mount Brake Light -M25- Sedan



High-mount Brake Light -M25- - Sedan From 10.00

The high-mount brake light is installed in the rear of the rear shelf, directly against the rear window.

Bulb holder, removing and installing

CAUTION:
- Switch off all electrical consumers.
- Switch off ignition and remove ignition key.

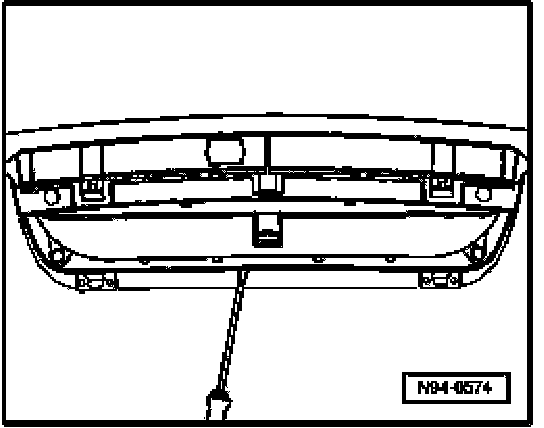

- Using screwdriver, unclip bulb holder from mounting.

NOTE: The bulb holder base plate contains soldered-in light emitting diodes (LEDs) that are not replaceable. In the event of LED malfunction, replace complete bulb holder.
