Instrument Panel Bulb: Service and Repair

Instrument Cluster Bulbs, Replacing (Green Illumination Only)







NOTE:
- Do not disassemble instrument cluster.
- Troubleshooting procedures and wiring diagrams

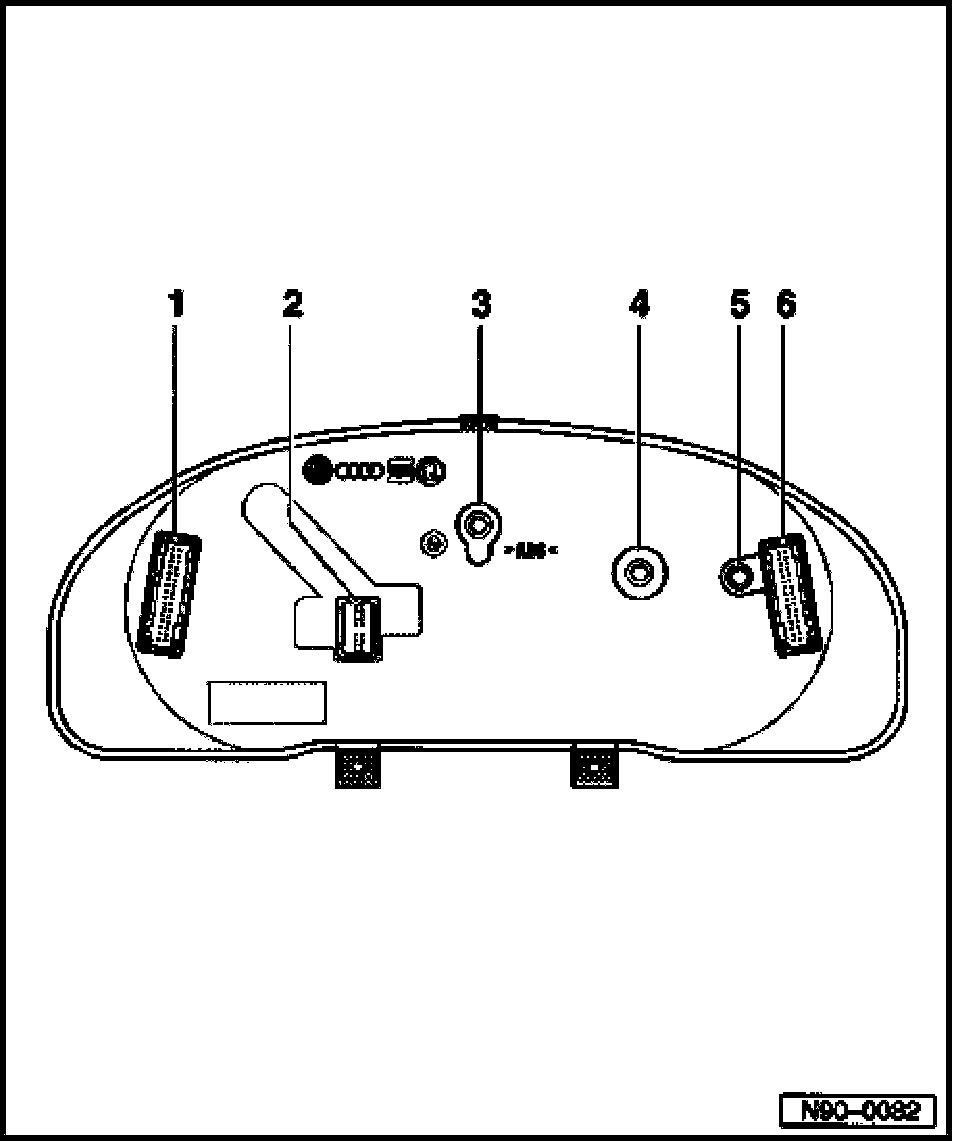

1. 32 pin multi-connector
- Green
2. 20 pin multi-connector
- Where applicable
- Red
3. Bulb with holder (headlight high beam indicator light -K1-)
- 12V/1.12W
4. Bulb with holder
Malfunction Indicator Lamp (MIL)
- 12V/1.12W
5. Bulb with holder (rear hatch/trunk lid ajar warning lamp -K102-)
- 12V/1.12W
6. 32 pin multi-connector
- Blue
