Heating and A/C Controls, Assembly

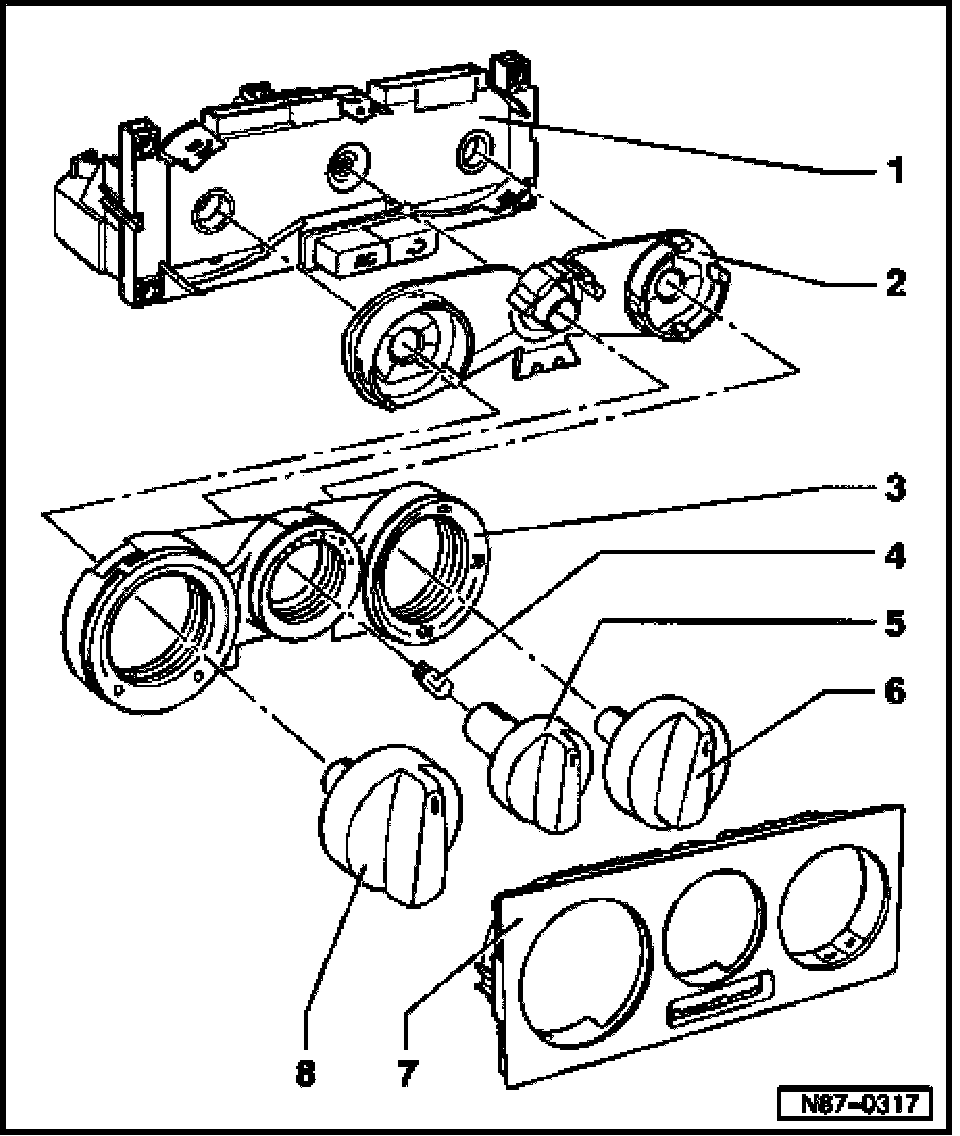

Heating And A/C Controls, Assembly







1. Heating and A/C controls
With:
- A/C switch -E35-
- Fresh air blower switch -E9-
- Switch for fresh air blower and recirculated air -E184-
2. Illumination filter
3. Trim panel
4. Fresh air control lever light -L16-
- 2 V, 1.2 W
- Removing:
- Un-clip trim panel -7- and rotary control -5-.
- Remove bulb (if necessary, slide a short piece fuel hose over bulb and pull out).
5. Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6. Rotary control
- For air distribution
- To remove: Use pliers with suitable plastic or rubber protection on jaws
7. Trim panel
8. Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
