A/C Control Head -E87- With Climatronic Control Module -J255-, Removing and Installing

A/C Control Head -E87- With Climatronic Control Module -J255-, Removing And Installing

Special tools, testers, measuring instruments and auxiliary items required
- VAS 5051/5052 Vehicle Diagnostic Testing and Information System.

NOTE: Climatronic control module -J255- and A/C control head -E87- are integrated into a single unit and cannot be serviced separately.

Removing

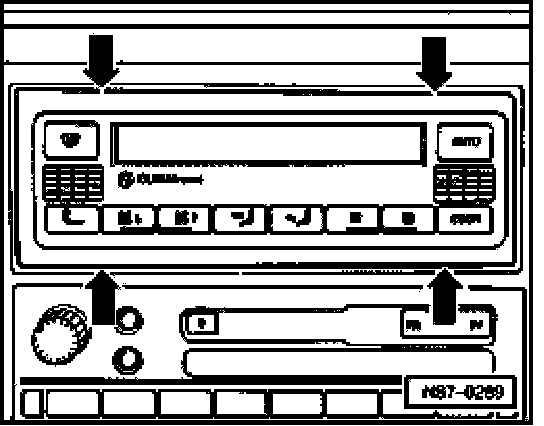

- Using a screwdriver with a protected tip, carefully unclip control head trim at locations indicated by -arrows-.

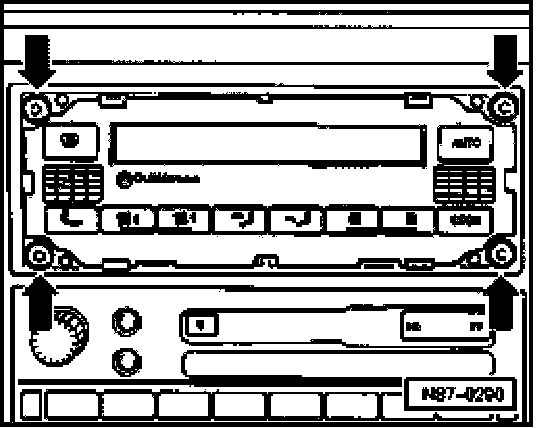

- Remove instrument panel screws -arrows-.
- Pull A/C control head/control unit from instrument panel opening.
- Disconnect electrical connections on rear of unit.
- Remove A/C control head with control unit.

Installing
- Install in reverse order of removal.
- Use VAS 5051/5052 in mode "Guided Fault Finding" to Code Control Module, function 07 and then initiate Basic Setting, function 04.
