Condenser, Assembly

Condenser Assembly







NOTE:
- Before carrying out any work on the A/C refrigerant system, refer to all CAUTIONS and WARNINGS in A/C refrigerant system safety measures.
- Service refrigerant system using Kent More ACR 4 or equivalent
- During servicing, all couplings, fittings and related fasteners must be torqued to specifications.

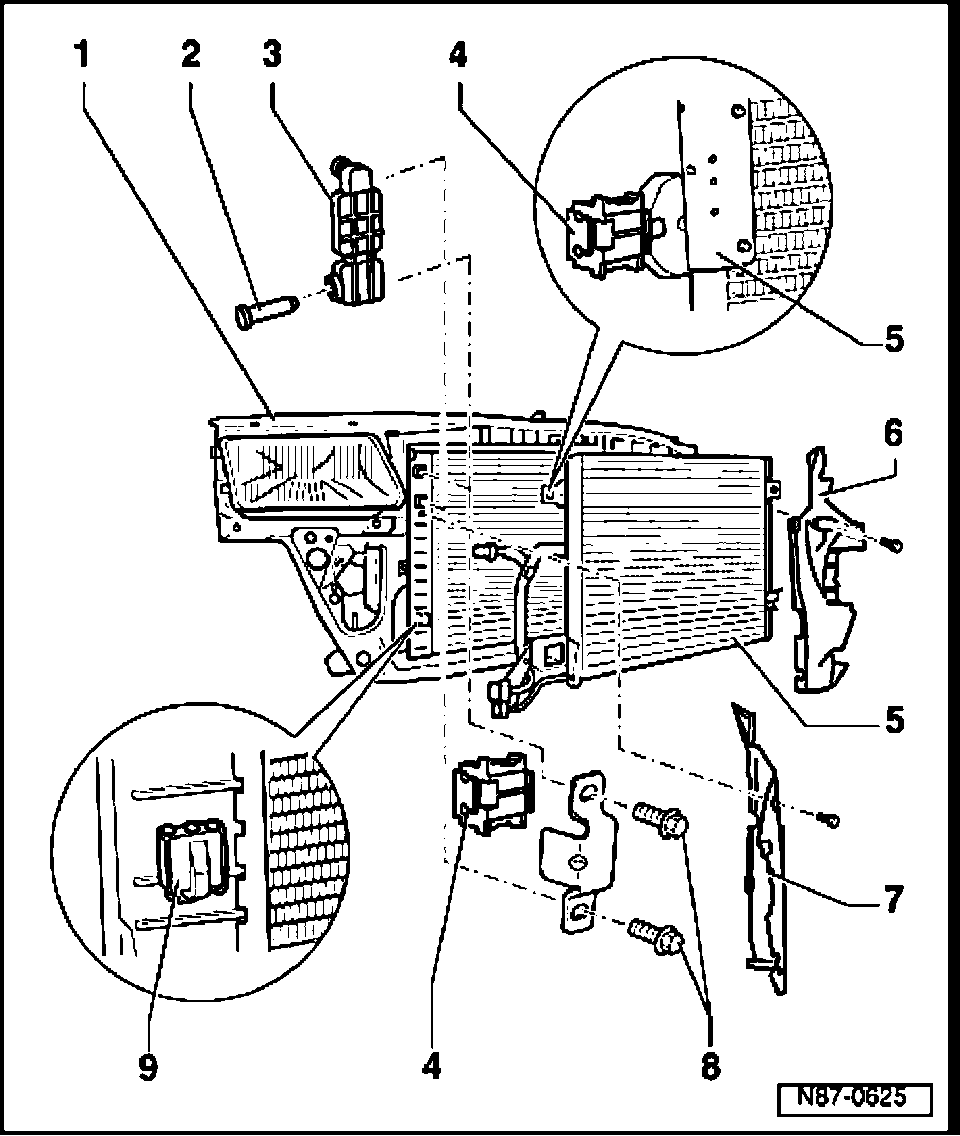

1. Lock carrier
2. Clip
- Vehicles from 10.00
3. Bracket
- Vehicles from 10.00
4. Grommet, upper
5. Condenser
6. Left air guide
7. Right air guide
8. Bolt
- 8 Nm (71 in lb)
- Qty.:4
9. Rubber grommet, lower
