Cabin Air Filter / Purifier: Service and Repair

Dust And Pollen Filter From 10.00, Removing And Installing

Removing

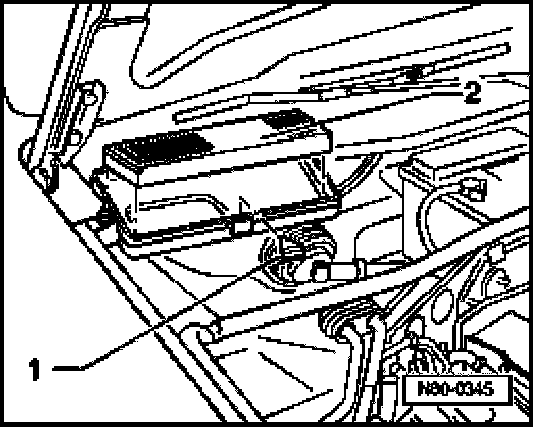

- Lift front hood. Remove air intake plenum cover.







- Unclip spring -1-. Remove dust and pollen filter upwards from housing.

Installing
- Installation in reverse order of removal.

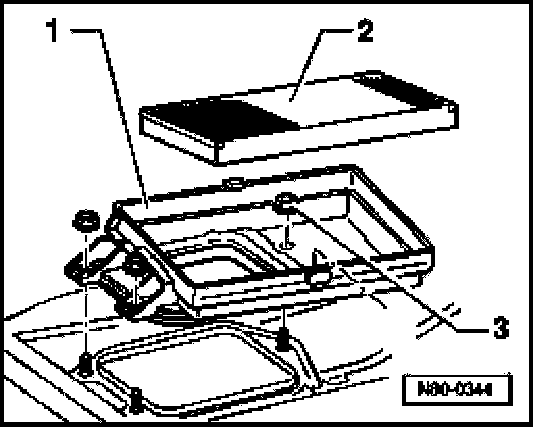

Filter housing, assembly
1. Filter housing
2. Dust and pollen filter
3. Nut (2 Nm)
