Water Pump Bracket

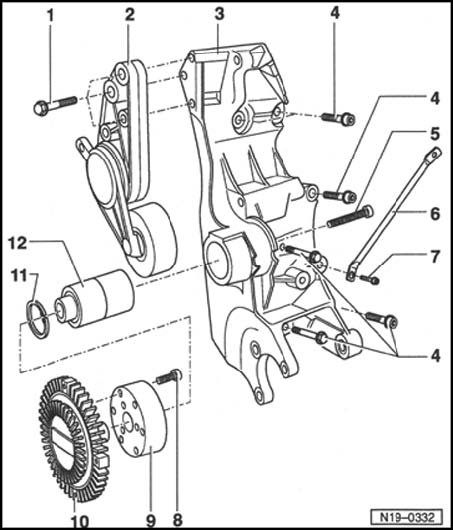

Bracket, assembly overview





1 - 25 Nm

2 - Ribbed belt tensioner

3 - Compact bracket
^ For generator, tensioner, viscous fan clutch and power steering pump

4 - 50 Nm
^ Observe tightening sequence

5 - 45 Nm
^ For viscous fan clutch

6 - Brace
^ Between compact bracket and intake manifold

7 - 20 Nm

8 - 30 Nm

9 - Pulley
^ For viscous fan clutch

10 - Viscous fan clutch

11 - Circlip

12 - Bearing bushing
^ For viscous fan clutch

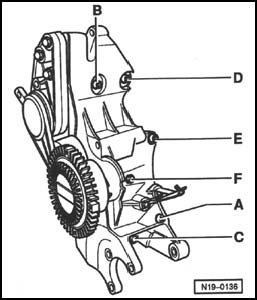

Tightening sequence, bracket to cylinder block

Special tools, testers and auxiliary items required
^ Torque wrench V.A.G 1331

Work procedure
- Set compact bracket in place on cylinder block.
- Fasten compact bracket in tightening sequence shown to 50 Nm:
1 - Tighten bolt - A -
2 - Tighten bolt - B -
3 - Tighten bolt - C -
4 - Tighten bolt - D -
5 - Tighten bolt - E -
6 - Tighten bolt - F -
