Engine, Removing and Installing

Engine, removing and installing

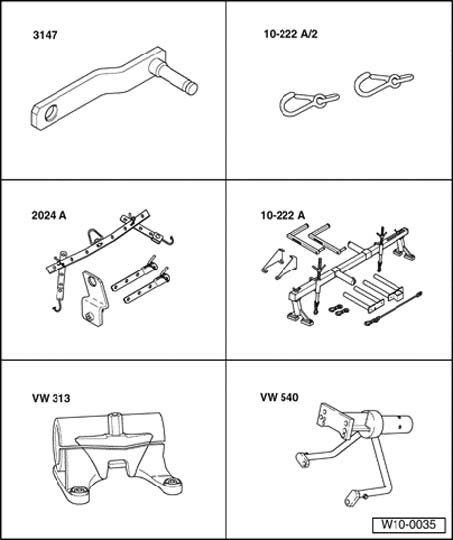

Special tools, testers and auxiliary items required
^ Engine support adapter 3147
^ Additional hooks 10-222 A/2
^ Engine Sling 2024 A
^ Engine support bridge 10-222 A with bracket for engine 10-222 A/1
^ Holding fixture VW 313
^ Holding fixture VW 540

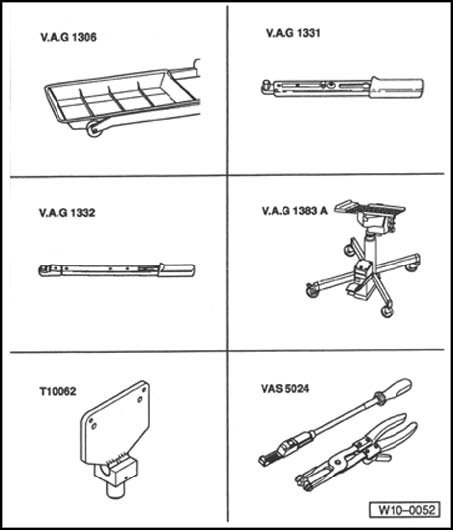

Special tools, testers and auxiliary items required
^ Drip tray V.A.G 1306
^ Torque wrench 5-50 Nm V.A.G 1331
^ Torque wrench 40-200 Nm V.A.G 1332
^ Engine/gearbox jack V.A.G 1383 A
^ Support T10062
^ Spring-type clip pliers VAS 5024

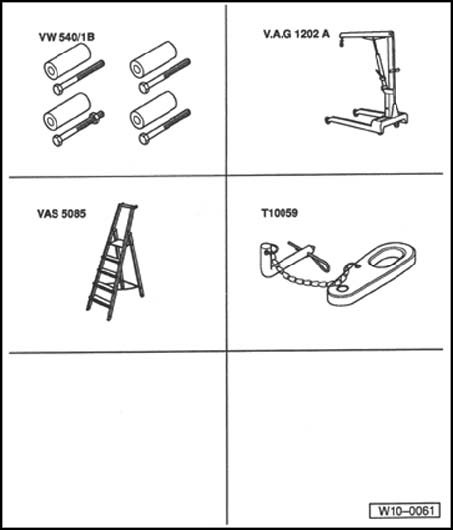

Special tools, testers and auxiliary items required
^ Spacers VW 540/1B
^ Shop crane V.A.G 1202 A
^ Step ladder VAS 5085
^ Shackle T10059
^ Grease G 000 100 (Vehicles with manual transmission)
^ Cable tie





Changing mount T10062
- Drill an additional hole centered at height of lower bore if not yet present.
- a = 8.5 mm
