Removal and Replacement

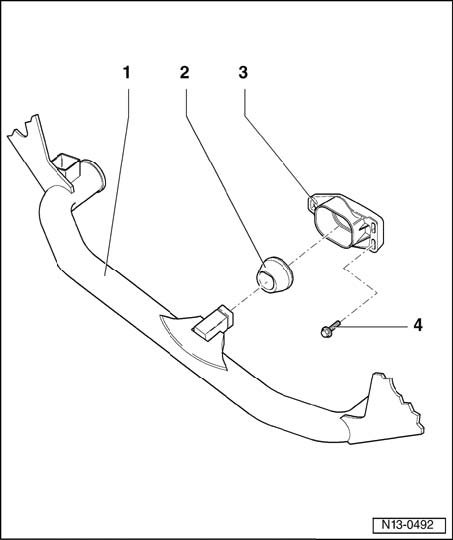

Front engine mount, assembly overview
1 - Transverse pipe
^ with torque bracket
2 - Bump stop
3 - Limit stop
^ Rest it on the bump stop under its own weight and fasten the securing bolts
4 - 30 Nm
Front engine mount, assembly overview
1 - Transverse pipe
^ with torque bracket
2 - Bump stop
3 - Limit stop
^ Rest it on the bump stop under its own weight and fasten the securing bolts
4 - 30 Nm
